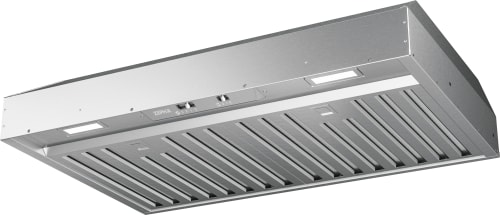

Zephyr Monsoon Mini II AK9128BS - Monsoon Mini 30 Inch Insert Liner
Zephyr Monsoon Mini II AK9128BS - Monsoon Mini 30 Inch Insert Liner
Zephyr Monsoon Mini II AK9128BS - Monsoon Mini 30 Inch Insert Liner
Zephyr Monsoon Mini II AK9128BS - Monsoon Mini 30 Inch Insert Liner
+4

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr Monsoon Mini II AK9128BS
Authorized
Dealer

Zephyr Monsoon Mini II
AK9128BS
Monsoon Mini 30 Inch Insert Liner with 3-Speed 300 CFM Blower, Mechanical Slide Controls, LumiLight LED Lighting, Hybrid Baffle Filters, 4 Sones Maximum, and Optional Recirculating Kit

Top Quality Store on Google
quick specs
Style: Standard Hood
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 28 3/8 Inch
Depth: 18 1/16 Inch
Height: 6 1/8 Inch
WiFi: No
Remote Control: No
CFM: 300 CFM
Permanent Air Flow Reduction: No
Noise Level: 4 Sones
Duct Size: 7 Inch
Number of Fan Speeds: 3
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: No
View more
$749.00
MSRP: $799.00
You save $50.00
OR
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Zephyr
Series: Monsoon Mini II
Model: AK9128BS
Appearance
Style: Standard Hood
Type: Cabinet Insert
Color: Stainless Steel
Trim Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Under Cabinet
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 28 3/8 Inch
Depth: 18 1/16 Inch
Height: 6 1/8 Inch
Smart
WiFi: No
Bluetooth: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Remote Diagnostics: No
Dash Replenishment: No
AI Technology: No
Capacity
CFM: 300 CFM
Permanent Air Flow Reduction: No
Noise Level: 4 Sones
Duct Size: 7 Inch
Features
Number of Fan Speeds: 3
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lighting Levels: 2
Lights: LED
Delay Shut-Off: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
CEE Rating: Not Available
Amps: 15
Voltage: 120 Volts
Approved for Outdoor Use: No
GTIN
UPC: 646328009563
EAN: 0646328009563
Are you a Trade Pro? Join Now

Description

Monsoon Mini 30 Inch Insert Liner with 3-Speed 300 CFM Blower
Good things come in small packages, and in this case, it's the Monsoon Mini one-piece liner. Includes dual-level LumiLight LED Lighting and 3-speed mechanical slide controls. Also equipped with a 300-CFM blower and the ability to duct either vertically or horizontally.

Specifications

Performance
Internal Blower:
150 - 300 CFM
Internal Sones:
1.5 - 4
Features
Controls:
Mechanical Slide
Speed Levels:
3
Lighting:
LumiLight LED, 6W x2
Lighting Levels:
2
Filters:
Hybrid Baffle
Recirculating:
Optional
Duct Specifications
Vertical - Internal:
7" Round, or 3 1/4" x 10"
Horizontal - Internal:
3 1/4" x 10"
Warranty
Parts:
3 Years
Labor:
1 Year
Dimensions
Width:
28-3/8 (30 )
Depth:
18 1/16"
Height:
6 1/8"

Features

3-Speed 300 CFM Blower
  • 150-300 CFM blower speeds
Mechanical Slide Controls
  • Easy to use slide controls to operate the 3 blower speeds
LumiLight LED Lighting
  • Dual-level LED lighting to illuminate the cooktop
Hybrid Baffle Filters
  • Filter out residue and grease from cooking
Recirculating Option
  • Go from ducted to recirculating with the Recirculating Kit (ZRC-9100A)
Warranty
  • 3-years parts, 1-year labor
Additional Features
  • 4 Sones Maximum
  • Vertical or Horizontal Ducting
  • Optional Ductless Recirculating Kit
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Specification Guide
Owner Manual
