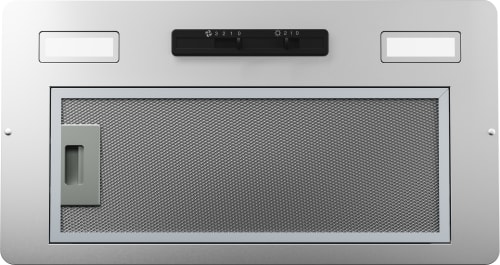

Zephyr Core Collection AK8400BS - Front View
Zephyr Core Collection AK8400BS - Left Side
+4

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr Core Collection AK8400BS
Authorized
Dealer

Zephyr Core Collection AK8400BS 21 Inch Tornado Mini Cabinet Insert Hood with 3-Speed Levels, Mechanical Slide Controls, LumiLight LED Lighting, Aluminum Mesh Filter, Value Driven, and UL Listed: 400 CFM

Top Quality Store on Google
quick specs
Style: Standard Hood
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 20 9/16 Inch
Depth: 11 Inch
Height: 9 11/16 Inch
WiFi: No
CFM: 400 CFM
Permanent Air Flow Reduction: No
Noise Level: 5 Sones
Duct Size: 6 Inch
Number of Fan Speeds: 3
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: No
View more
Power: 400 CFM
400 CFM
400 CFM
AK8400BS
$449.00
$449.00
MSRP: $499.00
You save $50.00
OR

Available

Available Items currently on their way to our warehouse or stocked at a vendor's or manufacturer's facility are marked as "Available." Once we've received your items, we aim to ship these products within 24-48 business hours. If there's any change to this schedule, we'll promptly send you an email detailing your order's Estimated Arrival, including specific shipping dates. Rest assured, we're committed to informing you every step of the way, ensuring you know exactly when to expect your purchase.
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Zephyr
Series: Core Collection
Model: AK8400BS
Appearance
Style: Standard Hood
Type: Cabinet Insert
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Under Cabinet
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 20 9/16 Inch
Depth: 11 Inch
Height: 9 11/16 Inch
Smart
WiFi: No
Bluetooth: No
Capacity
CFM: 400 CFM
Permanent Air Flow Reduction: No
Noise Level: 5 Sones
Duct Size: 6 Inch
Features
Number of Fan Speeds: 3
Filter Type: Mesh
Dishwasher Safe Filters: Yes
Lighting Levels: 2
Lights: LED
Delay Shut-Off: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
Amps: 15
Voltage: 120 Volts
Approved for Outdoor Use: No
GTIN
UPC: 646328009532
EAN: 0646328009532
Are you a Trade Pro? Join Now

Description

21 Inch Tornado Mini Cabinet Insert Hood with 3-Speed Levels
Designed with cost efficiency and versatility in mind, this Tornado Mini power pack fits under the standard 12-inch cabinet depth- or choose one of the Zephyr's optional, adjustable-depth, stainless steel liners to accommodate custom hood enclosures from 17 1/2- inch to 20 1/2- inch deep. This Tornado Mini Insert features include dual-level LumiLight LED lights, an ultra-quiet blower, and a recirculating option for ductless installations.

Specifications

Blower Performance
Blower CFM (Min. - Max.):
210 - 400
Sones (Min. - Max.):
2 - 5
Features
Controls:
Mechanical Slide
Speed Levels:
3
Auto Delay-Off:
No
Lighting:
LumiLight LED, 6W x2
Dual-Level Lighting:
Yes
Filters:
Aluminum Mesh x1
Recirculating Option:
Yes
Duct Specifications
Vertical Internal Blower:
6" Round
Horizontal Internal Blower:
NA
Electrical Specifications
AC Power:
120V, 60Hz at Max. 3A
Dimensions
Width:
20 9/16"
Depth:
11"
Height:
9 11/16"
Mounting Height Range
Electrical Cooktop:
20" - 36"
Gas Cooktop:
24" - 36"
Warranty
Parts:
3 Years
Labor:
1 Year

Features

3-Speed Levels
  • 3-speed fan level for every cooking situation
400 CFM Blower
  • A powerful blower that is efficient and quiet
Dual-Level LumiLight LED Lighting
  • Dual levels of LED light offer the perfect mood option for your kitchen
Aluminum Mesh Filter
  • Filter out residue and grease from cooking
Warranty
  • 3-years parts, 1-year labor
Additional Features
  • Mechanical Slide Controls
  • Value Driven
  • Recirculating Option
  • UL Listed
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Specification Sheet
HVAC Fittings Spec Sheet
Liner Specs
Owners Guide
Liner Manual
Exploded View Diagram
