Home > Cooking Appliances > Range Hoods > Wall Mount Hoods > AK7636AS

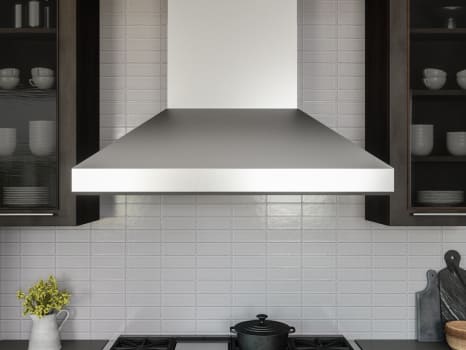

Zephyr Pro Titan AK7636AS - Front View
Zephyr Pro Titan AK7636AS - Front View
Zephyr Pro Titan AK7636AS - Side View
Zephyr Pro Titan AK7636AS - Side View
+2

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr Pro Titan AK7636AS
Authorized
Dealer

Zephyr Pro Titan
AK7636AS
36 Inch Wall Hood with PowerWave™ Blower, Airflow Control Technology™, Grease Collection Tray, Directional LED Lighting, Electronic LCD Controls, CleanAir Function and Professional Baffle Filters

Top Quality Store on Google
quick specs
Style: Standard Hood
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Width: 35 15/16 Inch
Depth: 24 Inch
Height: 30 Inch
CFM: 750 CFM
Noise Level: 0.5 Sones
Number of Fan Speeds: 6
Dishwasher Safe Filters: Yes
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Zephyr
Series: Pro Titan
Model: AK7636AS
Appearance
Style: Standard Hood
Type: Hood
Color: Stainless Steel
Mounting Type: Wall Mount
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 35 15/16 Inch
Depth: 24 Inch
Height: 30 Inch
Capacity
CFM: 750 CFM
Noise Level: 0.5 Sones
Features
Number of Fan Speeds: 6
Dishwasher Safe Filters: Yes
Lighting Levels: 2
Technical Details
Energy Star Rated: No
Amps: 15
Voltage: 120 Volts
GTIN
UPC: 646328006562
EAN: 0646328006562
Are you a Trade Pro? Join Now

Description

36 Inch Wall Hood with PowerWave™ Blower
Titan challenges the definition of pro-style hoods with its impressive size, powerful blower, and stunning good looks. Featuring Zephyr's new PowerWave™ blower technology, Titan features a 750 CFM blower with the option to combine two blowers together to achieve 1,300 CFM. Its unique aerodynamic blades improve efficiency with unparalleled quiet operation. The ultimate workhorse in the kitchen, Titan is available up to 60-inches and features pro baffle filters and LED lighting.

Specifications

Features
ACT™ Technology:
Yes
Controls:
Electronic LCD
Speed Levels:
6
Auto Delay-Off:
Yes
CleanAir Function:
Yes
Directional Lighting:
Bloom™ GU10 LED, 6W x2
Dual-Level Lighting:
Yes
Filters:
Pro Baffle x2
Grease Collection Tray:
Yes
Wireless Remote Control:
Yes, Optional
Recirculating Option:
No
Duct Cover Extension Option:
Yes
ADA Compliant:
Yes (w/ remote accessory)
Duct Specifications
Vertical Single Internal Blower:
8 Round
Horizontal Single Internal Blower:
8 Round
Vertical Dual Internal Blower:
10 Round
Horizontal Dual Internal Blower:
10 Round

Features

PowerWave™ Blower
  • PowerWave™ has unique aerodynamic blades to help move up to 750 CFM of air while minimizing noise and improving efficiency.
Airflow Control Technology™ (ACT™)
  • An exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to 590, 390 or 290 to meet local code requirements.
Other Features
  • Grease Collection Tray
  • Directional LED Lighting
  • Electronic LCD Controls
  • CleanAir Function
  • Professional Baffle Filters
Warranty
  • Parts 3 Years Limited
  • Labor 1 Year Limited
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Owner's Guide
Specification Guide
ACT Conversion Sheet
