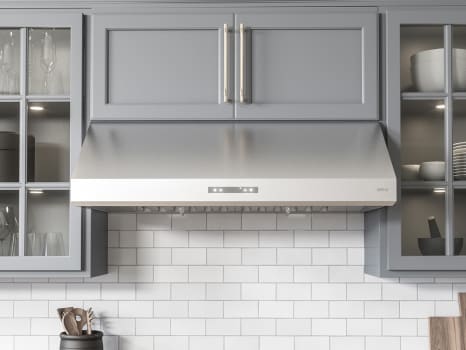

Zephyr Pro Collection AK7336AS - Tidal I Under Cabinet Hood
Zephyr Pro Collection AK7336AS - Tidal I Under Cabinet Hood
Zephyr Pro Collection AK7336AS - Pro Baffle Filters
Zephyr Pro Collection AK7336AS - Proximity Touch Controls
+4

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr Pro Collection AK7336AS
Authorized
Dealer

Zephyr Pro Collection
AK7336AS
Tidal I Under-Cabinet Smart Range Hood with 6 Speed 700 CFM Motor, Proximity Controls, Tri-Level LED, Pro Baffle Filters, Airflow Control Technology, PowerWave, Wi-Fi Connect, UL Listed, and ADA Compliant: 36" Width

Top Quality Store on Google
quick specs
Style: Canopy Pro Style
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 35 7/8 Inch
Depth: 22 1/2 Inch
Height: 11 Inch
WiFi: Yes
Remote Control: Yes
CFM: 700 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 6 Sones
Duct Size: 8 Inch
Number of Fan Speeds: 6
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
View more
Size: 36" Width
30" Width
30" Width
AK7300AS
$1,699.00
36" Width
36" Width
AK7336AS
$1,799.00
$1,799.00
MSRP: $1,899.00
You save $100.00
OR
FREE Delivery Available

Available

Available Items currently on their way to our warehouse or stocked at a vendor's or manufacturer's facility are marked as "Available." Once we've received your items, we aim to ship these products within 24-48 business hours. If there's any change to this schedule, we'll promptly send you an email detailing your order's Estimated Arrival, including specific shipping dates. Rest assured, we're committed to informing you every step of the way, ensuring you know exactly when to expect your purchase.
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Zephyr
Series: Pro Collection
Model: AK7336AS
Appearance
Style: Canopy Pro Style
Type: Hood
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Under Cabinet
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 35 7/8 Inch
Depth: 22 1/2 Inch
Height: 11 Inch
Smart
WiFi: Yes
Bluetooth: Yes
Alexa: Yes
Google Home: Yes
Remote Control: Yes
Remote Monitoring: Yes
Remote Diagnostics: Yes
App Integration: Zephyr Connect App, Amazon Alexa, Google Home
Capacity
CFM: 700 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 6 Sones
Duct Size: 8 Inch
Features
Number of Fan Speeds: 6
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lighting Levels: 3
Lights: LED
Delay Shut-Off: Yes
Technical Details
ADA Compliant: Yes
Energy Star Rated: No
CEE Rating: Not Available
Amps: 5
Voltage: 120 Volts
GTIN
UPC: 646328009204
EAN: 0646328009204
Are you a Trade Pro? Join Now

Description

Tidal I Under-Cabinet Smart Range Hood with 6 Speed 700 CFM Motor
Tidal I under-cabinet, the pro-style hood is the next wave of the future with its optional dual 1300-CFM PowerWave™ blowers and Zephyr Connect capabilities. Featuring professional baffle filters, LumiLight LED Lighting, and 6-speed Proximity Touch Controls, Tidal I is the ultimate in power and efficiency.

Control your range hood from anywhere using your mobile device with the Zephyr Connect App. Get real-time diagnostics and product information, and connect to smart devices such as Amazon Alexa or Google Home smart speakers.

Specifications

Features
Size:
36"
Color:
Stainless Steel
Zephyr Connect App Compatible:
Yes
Alexa & Google Home Compatible:
Yes
ACT™ Technology:
590, 390, 290, Single Blower Only
Controls:
Proximity Touch
Speed Levels:
6
Auto Delay-Off:
Yes
CleanAir Function:
Yes
Lighting:
LumiLight LED, 6W x2
Tri-Level Lighting:
Yes
Filters:
Pro Baffle x2
Recirculating Option:
Yes
UL Listed:
Yes
ADA Compliant:
Yes, with Zephyr Connect or Remote
Blower Performance
Blower CFM (Min. - Max.):
200 - 700
Sones (Min. - Max.):
0.8 - 6
ACT 590 CFM (Min. - Max.):
200 - 590
ACT 390 CFM (Min. - Max.):
200 - 390
ACT 290 CFM (Min. - Max.):
200 - 290
Optional Dual Blower (Min. - Max.):
300 - 1,300
Duct Specifications
Vertical Single Internal Blower:
8" Round
Horizontal Single Internal Blower:
3 1/4" x 10" or 8" Round
Vertical Dual Internal Blower:
10" Round
Horizontal Dual Internal Blower:
NA
Electrical Specifications
AC POWER (Single Blower):
120V, 60Hz at Max. 5A
AC POWER (Dual Blower):
120V, 60Hz at Max. 9A
Dimensions
Mounting Height Range:
24" - 36"
Exterior Width:
36"
Width:
35 7/8"
Depth:
22 1/2"
Height:
11"
Warranty
Parts:
3 Years
Labor:
1 Year

Features

6 Speed 700 CFM Motor
  • A powerful blower that is efficient and quiet.
Tri-Level LumiLight LED Lighting
  • The LED light offers the perfect mood option for your kitchen.
Professional Baffle Filters
  • Dishwasher-safe, high-airflow pro baffle filters help trap grease and remove smoke.
Airflow Control Technology
  • ACT is an exclusive feature built into specific Zephyr hoods, limiting the maximum blower CFM to meet local code requirements.
PowerWave™ 3-Phase Blower Technology
  • Delivers best-in-class performance with unparalleled quiet operation and provides more power while minimizing noise and improving efficiency.

Wi-Fi Connect

  • Control your hood with Amazon Alexa and Google Home.
Additional Features
  • Proximity Touch Controls
  • Recirculating Options
  • Automatic Delay-Off
  • CleanAir Function
  • Compatible with Zephyr Connect App
  • Compatible with Smart Speakers
Claims and Certifications
  • UL Listed
  • ADA Compliant (with Remote or App)
Warranty
  • Parts 3 Years Limited
  • Labor 1 Year Limited
