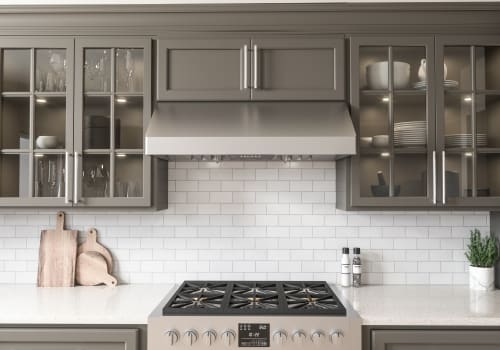

Zephyr Tempest AK7000CS - Front View
Zephyr Tempest AK7000CS - Front View
Zephyr Tempest AK7000CS - 3/4 View
Zephyr Tempest AK7000CS - 3/4 View
+7

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr Tempest AK7000CS
Authorized
Dealer

Zephyr Tempest
AK7000CS
30 Inch Under Cabinet Range Hood with 650 CFM Internal Blower, 6 Fan Speeds, Electronic Touch Controls, LumiLight LED Lighting, Professional Baffle Filters, Airflow Control Technology™, CleanAir Function, and Multiple Blower Options

Top Quality Store on Google
quick specs
Style: Standard Hood
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 29 7/8 Inch
Depth: 22 1/2 Inch
Height: 11 Inch
Remote Control: Yes
CFM: 650 CFM
Duct Size: 8 Inch
Number of Fan Speeds: 6
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
View more
Width: 30" Width
30" Width
30" Width
AK7000CS
36" Width
36" Width
AK7036CS
$1,349.00
In stock
42" Width
42" Width
AK7042CS
$1,499.00
In stock
48" Width
48" Width
AK7048CS
$1,799.00
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Zephyr
Series: Tempest
Model: AK7000CS
MPN: AK7000CS
Appearance
Style: Standard Hood
Type: Hood
Color: Stainless Steel
Mounting Type: Under Cabinet
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 29 7/8 Inch
Depth: 22 1/2 Inch
Height: 11 Inch
Smart
Remote Control: Yes
Smart Accessory Required: Yes
Capacity
CFM: 650 CFM
Duct Size: 8 Inch
Features
Number of Fan Speeds: 6
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lighting Levels: 2
Lights: LED
Delay Shut-Off: Yes
Technical Details
ADA Compliant: Yes
Amps: 5
Voltage: 120 Volts
GTIN
UPC: 646328008672
EAN: 0646328008672
Are you a Trade Pro? Join Now

Description

30 Inch Under Cabinet Range Hood with 650 CFM Internal Blower
A streamlined under-cabinet pro-style range hood, Tempest I combines power, efficiency and flexibility. 650-CFM, 390 CFM or 290 CFM blower options, LumiLight LED lighting and high-airflow pro baffle filters (that are dishwasher-safe) ensure a lifetime of exceptional performance. Additional options like a wireless remote control and recirculation kits for kitchens that require ductless venting ensure all you have to think about is cooking.

Specifications

Performance
Included Single Blower:
200-650 CFM, 1-6 sones
ACT 390:
200-390 CFM, 1-4 sones
ACT 290:
200-290 CFM, 1-3 sones
Optional Dual Blower:
400-1,200 CFM, 3.5-9 sones
Features
ACT™ Technology:
Yes
Controls:
Electronic Touch
Speed Levels:
6
Auto Delay-Off:
Yes
CleanAir Function:
Yes
Lighting:
LumiLight LED, 6W x2
Dual-Level Lighting:
Yes
Filters:
Pro Baffle x2
Wireless Remote Control Option:
Yes, RF
Dual Internal Blower Option:
No
Recirculating Option:
Yes, Single Blower Only
ADA Compliant:
Yes (with remote accessory)
Duct Specifications
Vertical Single Internal Blower:
8" Round
Horizontal Single Internal Blower:
3-1/4" x 10" or 8" Round
Vertical Dual Internal Blower:
10" Round
Horizontal Dual Internal Blower:
NA
Electrical Specifications
AC Power (Single Blower):
120V, 60Hz at Max. 5A
AC Power (Dual Blower):
120V, 60Hz at Max. 9A
Optional Accessories
12" Duct Cover:
AK0728
Wireless Remote Control:
14000005
Dual Internal Blower Kit:
PBD1200A
Recirculating Kit:
ZRC7048B
Backsplash with Shelves:
AK0718
Bloom™ GU10 LED:
Z0B0040
Make-Up Air Kit (Single Blower):
MUA008A
Make-Up Air Kit (Dual Blower):
MUA010A
Dimensions
Width:
47 15/16"
Depth:
22 1/2"
Height:
11"
Mounting Height Range:
26" - 36"
Warranty
Parts:
3 Years
Labor:
1 Year

Features

6-Speed/650 CFM Blower
  • Quickly pull smoke and cooking odors out of the air.
Electronic Touch Controls
  • Offer simple operation.
Halogen Lighting
  • Illuminate the cooktop below with bright or subtle lighting for better visibility while cooking.
Professional Baffle Filters
  • Filter out residue from cooking.
  • Dishwasher safe for easy cleaning.
Airflow Control Technology™
  • Allows the installer to set the maximum blower CFM to align with local codes and regulations.
CleanAir Function
  • A feature that turns on the blower on low speed every 4 hours for 10 minutes to remove stagnant air in the kitchen.

Additional Features

  • 11" Body Height
  • Dual-Level Lighting
  • Optional Backsplash w/ Shelves
  • Optional Recirculating Kit (650 CFM only)
  • Multiple Blower Options
  • Optional Duct Cover Extension Kit
  • Optional Make-Up Air Kit
  • Optional Wireless Remote Control
  • Auto Delay-Off
  • ADA Compliant
Warranty
  • Parts 3 Years Limited
  • Labor 1 Year Limited
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Owner Manual
Specification Sheet
Blower Specifications
ACT Conversion Sheet
