Description

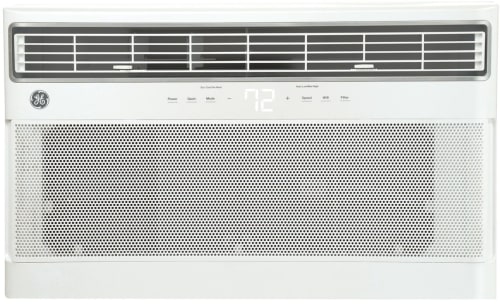

12,000 BTU Built In Air Conditioner
The ultimate fit & finish for more usable space and the best in built-in installation. Sleeve and chassis are perfectly integrated, creating a seamless fit without leaks or gaps.
Specifications
Overview
Wall Case:
RAB46/47/48/26 Required At Additional Cost
Installation:
Wall Mounted
Dehumidification (pts./hr.):
3.4/3.4
Heating - Electric - BTUH - AHAM - 1R:
10600/8600
Air Discharge:
Over / Under
Cooling Capacity Range BTU/Hr:
6,100 - 12,400 Btu
Digital Time Temp Display:
Yes
Outdoor Vent / Exhaust:
Yes
Plug Type:
Perpendicular/Right Angle LCDI
Improved Corrosion Package:
Yes
Temperature Range:
60->85 F
Thermostat Type:
Electronic Digital
Unit Type:
Heat / Cool Unit
Cooling Rated Capacity BTU/Hr:
12,000 Btu
Heating - Electric - Heater Amps:
15.0/13.5
Rated Heat Pump BTU:
8500/8300
Voltage/Hertz/Phase:
230-208/60/1
Volts/Hertz:
230V-208V/60Hz
Labor Warranty:
Full 2-year entire appliance
5-year sealed refrigerating system:
Yes
Parts Warranty Limited 2-year entire appliance:
Yes
Limited 5-year sealed refrigerating system:
Yes
Weights & Dimensions
Approximate Shipping Weight:
94 lb
Overall Depth:
21.8125 in
Overall Depth (Excludes Sleeve):
19.90625 in
Overall Height:
15.625 in
Overall Height (Excludes Sleeve):
14.875 in
Overall Width (Excludes Sleeve):
24.8125 in
Features
Variable Speed Inverter Technology
- Variable speed operation provides an advantage with shorter recovery time, improved efficiency, sound quality and dehumidification
New Upgraded Appearance
- Bright, clean color & a decorative metallic silver accent encasing the air discharge louver, provide an overall sleek appearance
Quiet Mode
- Unit operates fan and compressor at lowest speeds to provide best performance
Corrosion Protection
- Corrosion protected exterior components
Electronic Cap Touch Controls
- Controls offer a high-end and smooth to-the-touch panel
Large LCD Auto-Dimming Display
- Intuitive & large white LCD display can be easily seen from anywhere in the room. Convenient Auto-Dimming feature provides ambient lighting during the night
3-Speed Fan
- Select High, Medium, Low or Auto Setting to achieve the best in air comfort & ultimate flexibility. Available on heat-cool models
6-Way Directional Airflow
- Direct where the air flows with up to 6 directional vents—cooling and/or heating the areas of the room that need it the most
Washable Filter
- Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air—providing a cleaner environment
Remote Control Included
- Slim, intuitive and easy to use, the remote control enables adjusting temperatures and settings conveniently from anywhere in the room
