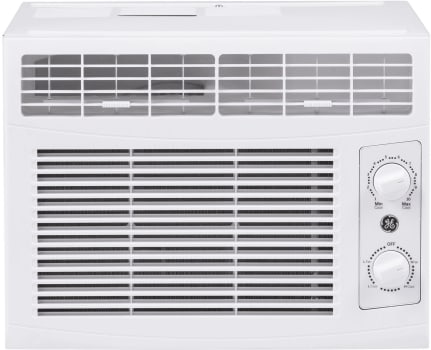

GE AHV05LZ - Front View
GE AHV05LZ - Front View
GE AHV05LZ - 3/4 View
GE AHV05LZ - 3/4 View
+8

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
GE AHV05LZ
Authorized
Dealer

GE
AHV05LZ
5,050 BTU EZ Mount Window Air Conditioner with 11.0 CEER, 115V, Fixed Chassis, 2-Way Adjustable Louver, Mechanical Thermostat, and Slide-Out Filter

Top Quality Store on Google
quick specs
Width: 16 7/16 Inch
Depth: 15 Inch
Height: 12 9/16 Inch
Cooling Capacity (BTU): 5,050 BTU
WiFi: No
Remote Control: No
Remote Monitoring: No
Chassis Type: Fixed
Wall Sleeve Included: No
Control Type: Rotary
Remote Control Included: No
Plug Type: 5-15P
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: GE
Model: AHV05LZ
Dimensions
Width: 16 7/16 Inch
Depth: 15 Inch
Height: 12 9/16 Inch
Capacity
Smart
WiFi: No
Remote Control: No
Remote Monitoring: No
Features
Type: Window
Chassis Type: Fixed
Wall Sleeve Included: No
Maximum Cooling Amps: 4.1 Amps
Maximum Cooling Watts: 455 Watts
Heat: No
Energy Efficiency Rating: 11
Control Type: Rotary
Remote Control Included: No
PTAC: No
Window Type: Standard
Sleep Mode: Yes
Indoor CFM, High: 135 CFM
Indoor CFM, Low: 115 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
Plug Type: 5-15P
Voltage: 115 Volts
GTIN
UPC: 084691852162
EAN: 0084691852162
Are you a Trade Pro? Join Now

Description

5,050 BTU EZ Mount Window Air Conditioner
Beat the heat with GE's 5050 BTU Fixed Chassis Window Air Conditioner. Perfect for cooling areas of up to 150 sq. ft., this air conditioner can provide up to 5050 BTU cooling. Its manual thermostat lets you choose between 2 cooling settings as well as 2 fan speeds, with louvers can be moved both horizontally and vertically. It also maintains the moisture in the room as it comes with a 1 pt/hr dehumidifying feature. Window installation is made effortless with the included EZ Mount side curtain.

Specifications

Features
Airflow (cfm) Roomside (hi/low):
135/115
Chassis Type:
Fixed
Fan Speed Selections:
2 Cooling, 2 Fan Only
Filter Type:
Slide-Out
Louver Style:
2-Way
Mounting Type:
EZ Mount
Plug Type:
Parallel/NEMA 5-15
Rotary Compressor:
Yes
Thermostat Type:
Mechanical
Unit Type:
Cool Only
Vent/Air Exchange Exhaust:
Top Air Discharge
Refrigerant Type:
R-32
Area to Cool:
100-150
LCDI / AFCI power cord:
Yes
Power Cord Length:
72" Minimum
Product Type:
Window
Room Air Conditioner Features:
Adjustable Thermostat, Mechanical Control
Capacity
Cooling BTUH (MAX):
5050.0 Btu
Dehumidification (pts./hr.):
1
Appearance
Color Appearance:
White
Installation:
EZ Mount
Dimensions
Depth to Louvers:
6 1/4 in
Grille Depth:
1 3/16 in
Min./Max. Window Opening Width (in.):
21-7/8/36
Minimum Window Opening Height (in.):
13-3/8
Overall Depth:
15 in
Overall Height:
12 9/16 in
Overall Width:
16 7/16 in
Power and Ratings
CEER:
11.0
Cooling - Rated Cooling Amps AHAM:
4.1
Cooling - Watts:
455
Voltage (MAX):
115.0 V

Features

Cooling Capacity
  • 5,050 BTU, suitable for rooms up to 150 sq. ft.
Energy Efficiency
  • Features an 11.0 CEER (Combined Energy Efficiency Ratio), ensuring energy-efficient operation.
Adjustable Thermostat
  • Mechanical controls allow for easy adjustment of temperature settings.
Two-Way Adjustable Louvers
  • Distributes air evenly throughout the room for consistent cooling.
Slide-Out Filter
  • The filter can be easily removed for cleaning, maintaining optimal performance.
EZ Mount Installation Kit
  • Includes an installation kit for quick and easy setup in double-hung windows.
Compact Design
  • The unit's compact size makes it ideal for bedrooms, offices, or small living spaces.
