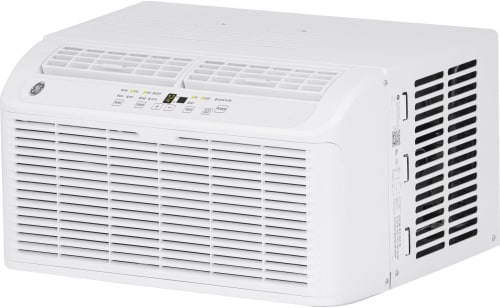

GE AHEL06BB - Product Photos_Un-installed/free-standing_Closed View

Image Disclaimer

Authorized

Dealer

GE

AHEL06BB

6,200 BTU Window Air Conditioner with Ultra Quiet Mode, 3 Cooling Settings, Filter Reminder, Electronic Controls, On/Off Timer, Remote Control, Sleep Mode and ADA Compliant

Name: GE AHEL06BB
Brand: GE
SKU: AHEL06BB
Price: 439 USD
Rating: 4.4 (17 reviews)

4.4

Average rating of
17 reviews

Top Quality Store on Google

quick specs

Width: 21 1/4 Inch

Depth: 18 1/8 Inch

Height: 12 7/16 Inch

Cooling Capacity (BTU): 6,200 BTU

WiFi: No

Alexa: No

Google Home: No

Remote Control: Yes

Remote Monitoring: No

Chassis Type: Fixed

Control Type: Digital

Remote Control Included: Yes

Plug Type: 5-15P

^$439^.00

Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information

Brand: GE

Model: AHEL06BB

Dimensions

Width: 21 1/4 Inch

Depth: 18 1/8 Inch

Height: 12 7/16 Inch

Capacity

Cooling Capacity (BTU): 6,200 BTU

Smart

WiFi: No

Alexa: No

Google Home: No

Remote Control: Yes

Remote Monitoring: No

Remote Diagnostics: No

Dash Replenishment: No

Smart Accessory Required: No

Features

Type: Window

Chassis Type: Fixed

Maximum Cooling Amps: 4.6 Amps

Maximum Cooling Watts: 520 Watts

Heat: No

Energy Efficiency Rating: 12.1

Control Type: Digital

Remote Control Included: Yes

PTAC: No

Sleep Mode: Yes

Indoor CFM, High: 175 CFM

Indoor CFM, Low: 135 CFM

Refrigerant Type: R-32

Technical Details

Energy Star Rated: No

ADA Compliant: Yes

Plug Type: 5-15P

Voltage: 115 Volts

GTIN

UPC: 084691894957

Description
Specifications
Features
Reviews

Description

6,200 BTU Window Air Conditioner
The GE AHEL06BB is a robust window AC unit tailored for smaller spaces—perfect for bedrooms or compact living areas. It balances quiet performance (42 dB), energy efficiency, and user-friendly features like Sleep Mode, Dry Mode, remote controls, and easy maintenance. Installation is hassle-free thanks to the EZ‑Mount system.

Specifications

Overview

Cooling BTUH (MAX):

6200.000000

Dehumidification (pts./hr.):

1.5

Plug Capacity:

115V/15A

Louver Style:

4-Way

Power Cord Length:

72" Minimum

Product Type:

Window

Chassis Type:

Fixed

Airflow Direction:

4-Way Top

Delay Timer:

24-Hour On/Off Timer

Filter Type:

One Touch Lift-Out

Remote Control:

Yes

Mounting Type:

EZ Mount

EER:

12.1

Airflow (cfm) Roomside (hi/low):

175/135

Area to Cool:

150-250

Rotary Compressor:

Yes

LCDI / AFCI power cord:

Yes

Digital Time Temp Display:

Yes

Check Filter Remind:

Yes

Dehumidify Function:

Yes

Fahrenheit To Celsius:

Yes

On/Off Timer:

Yes

Quiet Mode:

Yes

Remote Control:

Yes

Sleep Mode:

Yes

Fan Speed Selections:

3 Cooling

3 Fan Only:

Yes

Refrigerant Type:

R32

Vent/Air Exchange Exhaust:

Top Air Discharge

Plug Type:

Parallel/NEMA 5-15

Thermostat Type:

Thermistor

Unit Type:

Cool Only

Energy Saver:

Yes

Installation:

EZ Mount

Weight & Dimensions

Min./Max. Window Opening Width (in.):

26-9/16/39-1/4

Depth to Louvers:

Overall Height:

12 7/16

Minimum Window Opening Height (in.):

13-3/8

Overall Depth:

18 1/8

Net Weight:

56.6

Overall Width:

21 1/4

Approximate Shipping Weight:

69.3

Grille Depth:

1.125

Power/Rating

Hertz:

Sound Level (Low Fan, Cool):

51/63 dBA

Sound Level (Quiet Mode, Low Cool):

Sound Level (High Fan, Cool):

52/63 dBA

Cooling - Watts:

520

Cooling - Rated Cooling Amps AHAM:

4.6

CEER:

12.1

Voltage (MAX):

115.000000

Warranty

Parts Warranty:

1-Year Replacement

Labor Warranty:

No Warranty

Certifications

UL:

Yes

CUL:

Yes

AHAM:

Yes

California Prop 65:

Yes

ADA Compliant:

Yes

Features

Cools Small Rooms

6,200 BTU cooling capacity offers maximum comfort in rooms up to 250 square feet

Ultra Quiet

This quiet air conditioner reaches sounds as low as 42 dB, providing maximum comfort and minimum noise

Maximum Comfort Cool

Three cooling settings and fan speeds provide total flexibility with optimal home comfort and air conditioner efficiency

Filter Reminder

Get a filter change reminder when the filter needs cleaning, so you can keep the unit performing at its best

Electronic Controls

Program and adjust air conditioner settings with ease using simple digital controls
