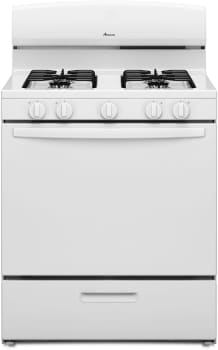

Amana AGR4230BAW - White Front View
Amana AGR4230BAW - White Front View
Amana AGR4230BAW - White Open View

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Amana AGR4230BAW
Authorized
Dealer

Amana AGR4230BAW 30 Inch Freestanding Gas Range with 4 Sealed Burners, 5.1 cu. ft. Capacity, SpillSaver Upswept Cooktop, Broiler Drawer and LP Gas Conversion Kit Included: White

quick specs
Cooktop: Sealed Burner
Drawer: Broiler
Width: 29 22/25 Inch
Depth: 27 1/5 Inch
Height: 46 1/4 Inch
Number of Burners: 4
Primary Oven Capacity: 5.1 Cu. Ft.
Continuous Grates: No
Convection: No
Self-Cleaning: No
Steam Clean: No
Glide Rack(s): No
Temperature Probe: No
Warranty Terms: 1 year
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!

You Might Also Like

Product Information
Brand: Amana
Model: AGR4230BAW
Warranty Terms: 1 year
?
Appearance
Fuel Type: Gas
Fuel Subtype: Natural Gas
Style: Freestanding
Color: White
Cooktop: Sealed Burner
Cooktop Control Type: Knobs
Oven Control Type: Knobs
Drawer: Broiler
Dimensions
Width: 29 22/25 Inch
Depth: 27 1/5 Inch
Height: 46 1/4 Inch
Capacity
Number of Burners: 4
Primary Oven Capacity: 5.1 Cu. Ft.
Burner
Burner 1 Output: 9500
Burner 2 Output: 9500
Burner 3 Output: 9500
Burner 4 Output: 5000
Gas Cooktop Features
Continuous Grates: No
Dishwasher Safe Grates: Yes
Cooktop Accessory: No Accessory
Grill: No
Griddle: No
French Top: No
Oven Features
Digital Temperature Display: No
Fast Preheat: No
Convection: No
Proof Mode: No
Self-Cleaning: No
Steam Clean: No
Racks: 2
Glide Rack(s): No
Temperature Probe: No
Broiler Element Location: Bottom
Broiler Pan Included: No
Interior Oven Light: Yes
Removable Door: Yes
Technical Details
Amps: 15
Voltage: 120 Volts
GTIN
UPC: 883049283616
EAN: 0883049283616
Are you a Trade Pro? Join Now

Description

30 Inch Freestanding Gas Range with 5.1 cu. ft. Capacity
This 30 inch gas range by Amana is the perfect addition to your kitchen. Its 4 sealed burners provide precise control at all temperatures, so you can prepare food while using the right amount of energy with the right burner. The EasyAccess broiler door is easy to reach and can help broil large dinners like steak and roasted vegetables. The SpillSaver Upswept Cooktop means that cleaning up is easier than ever. The raised edges and smooth surface of this cooktop help keep spills and splashes contained. This range includes an LP gas conversion kit for use with propane gas for convenience and versatility.

Specifications

Cooktop Features
Cooktop Element Style:
Sealed Burner
Cooktop Surface Color:
White
Cooktop Surface Material:
Porcelain Coated Steel
Number of Cooking Element Burners:
4
All Burner Type:
Single
All Burner Power:
9,500 BTU
Dishwasher Safe:
Yes
Grate Finish:
Gloss
Grate Material:
Cast Iron
Grate Type:
Wire
Number of Grates:
2
Oven Features
Automatic Convection Conversion Temperature Adjust:
No
Hot Surface Indicator Light:
No
Power On Indicator Light:
No
Broiler Location:
Drawer
Convection Element Type:
None
Convection Functions:
None
Light Type:
None
Number of Oven Racks:
2
Number of Rack Guides:
5
Oven Rack Type:
Standard
Style and Extras
Handle Material:
Plastic
Hidden Bake Element:
Yes
ADA Compliant:
No
UL:
Yes
Dimensions and Weight
Overall Width:
29 22/25"
Overall Depth:
27 1/5"
Overall Height:
46 1/4"
Overall Weight:
136 Lbs.
Amps Required:
15 Amps
Voltage Required:
120V

Features

5.1 Cu. Ft. Capacity
  • The large oven capacity of this range lets you cook multiple dishes at once, so you can handle everything from daily meals to large family dinners with ease.
SpillSaver Upswept Cooktop and Sealed Burners
  • The raised edges and smooth surface of this cooktop help make spills and splashes easy to clean up and sealed burners make cleanup easy by limiting spills from dripping beneath the cooktop.
EasyAccess Broiler Drawer
  • The EasyAccess broiler door is easy to reach and can help broil large dinners like steak and roasted vegetables.
LP Gas Convertible and Energy Star
  • With the included LP gas conversion kit, you can convert your range to run on propane gas. In addition, This range is Energy Star Qualified meaning no matter how you use it you're saving energy in your home.
