Description

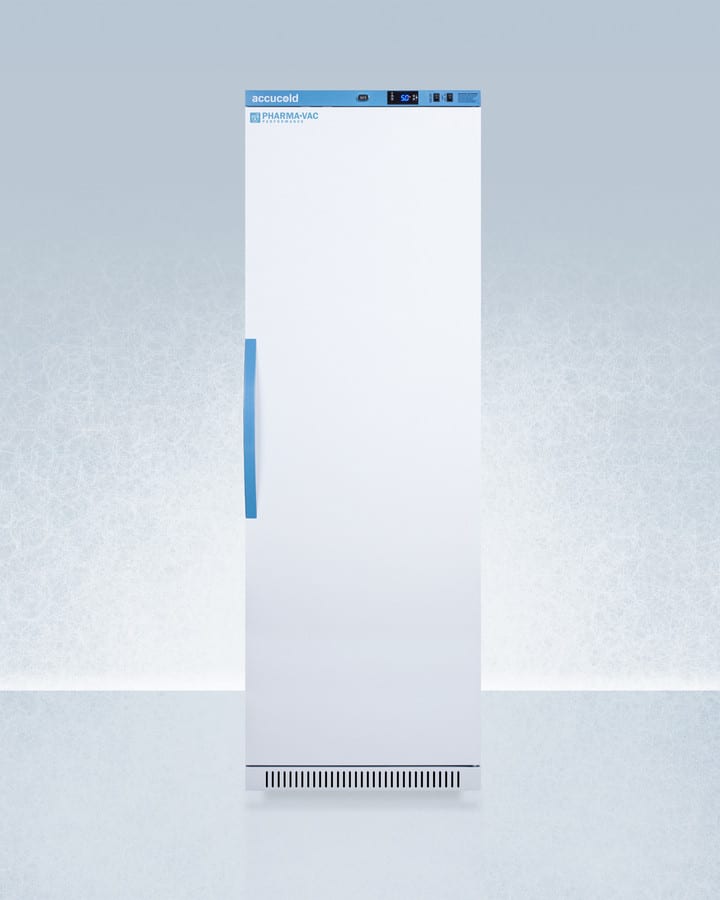

Pharma-Vac 24 Inch Freestanding Upright Freezer with 9.53 cu. ft. Capacity
Accucold's Pharma-Vac Performance Series upright freezers are designed and purpose-built for pharmacy, medication, and vaccine applications, supporting compliance with CDC/VFC/VFA guidelines.
The AFS14PVLHD is an upright frost-free all-freezer with a temperature range of -30°C to -10°C as recommended for various vaccines and pharmaceuticals. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate the temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit . The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital-grade cord with a 'green dot' plug is also included for added safety in high-traffic areas.
Inside, this freezer has 9.53 cu. ft of storage space and features six adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder-coated metal to ensure added durability and better temperature retention.
The AFS14PVLHD comes in a white exterior finish with a blue accented control panel and a left hand door swing. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Four pre-installed 4" high casters with brakes make it easier to move as needed.
Additional sizes and matching all-refrigerators are also available.
Note
Accucold freezers are purpose-built to meet the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or the DL2BKit accessory.
Specifications
Overview
Temperature Range:
-30 to -10ºC
Features
Electrical Specifications
Voltage/Frequency:
115 V AC/60 Hz
Dimensions & Weight
Height of Cabinet:
74 3/8"
Width with Door Open:
23 3/4"
Depth with Handle:
26 3/4"
Depth with door at 90°:
49 3/8"
Compressor Step Height:
10"
Compressor Step Width:
15 1/4"
Compressor Step Depth:
15 1/4"
Warranty
Parts & Labor Warranty:
2 Years
Compressor Warranty:
5 Years
Claims & Certifications
US Electrical Safety:
ETL
Canadian Electrical Safety:
ETL-C
Features
9.53 cu. ft. Capacity
- Designed and purpose-built for pharmacy, medication, and vaccine applications, this freezer offers ample space to securely store vaccines and pharmaceuticals
6 Adjustable Plastic-Coated Wire Shelves
- Unit's six shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
High/Low Temperature Alarm
- Visual and audible alarms alert if the interior temperature rises or falls out of set range
Open Door Alarm
- Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Audible Power Failure Alarm
- Battery-powered alarm sounds if the power connection is interrupted
Sensor Failure Alarm
- Audible and visual alarm warns if the sensor is disrupted
+/-1ºC Variation
- The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Adjustable Temperature
- Intuitive controls let you adjust the interior temperature between -30°C to -10ºC
Password Protection
- Control panel requires password entry to adjust the parameters beyond the set point
Resettable Min/Max Display
- Control panel provides a readout of the low and high temperatures in 15 minute increments
Remote Alarm Contacts
- Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Buffered Temperature Probe
- Thermometer probe is encased in a glass bead-filled bottle to better simulate temperature readings closest to stored contents
Factory Installed Lock
- Conveniently located towards the top of the door for easier user access (2 keys included)
Interior Light
- Energy efficient LED lighting with internal on/off switch
Access port
- Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Microprocessor Control Panel
- Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Antimicrobial Silver Ion-Coated Handle
- Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Durable Interior
- Walls are constructed from white powder coated metal for added strength and improved temperature retention
Versatile Design
- Compatible with Pyxis®, Omnicell®, and AcuDose RX®
100% CFC Free
- Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Extended Warranty
- 2 years parts and labor/5 years compressor
Additional Features
- Hospital Grade Cord with 'Green Dot' Plug
