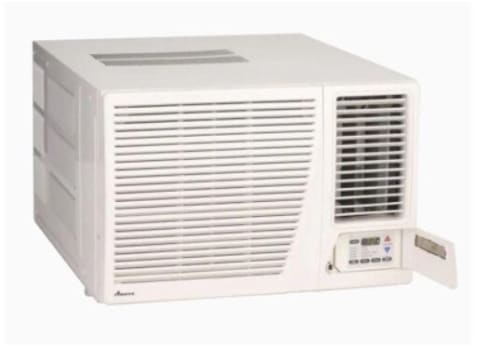

Amana AE183J35AA - 17,200 BTU Window Air Conditioner
Amana AE183J35AA - 17,200 BTU Window Air Conditioner
Amana AE183J35AA - 17,200 BTU Window Air Conditioner
Amana AE183J35AA - 17,200 BTU Window Air Conditioner
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Amana AE183J35AA
Authorized
Dealer

Amana
AE183J35AA
17,200 BTU Window Air Conditioner with 9,000 BTU Electric Heat, Remote Control, Ball Baring Fan Motors, Multi- Directional Air Flow, Access Filter, Drain Spout and R-32 Refrigerant

Top Quality Store on Google
quick specs
Width: 25 49/50 Inch
Depth: 25 49/50 Inch
Height: 17 Inch
Cooling Capacity (BTU): 17,200 BTU
Heating Capacity (BTU): 9,000 BTU
CFM Room Circulation: 500 CFM
WiFi: No
Alexa: No
Google Home: No
Remote Control: Yes
Remote Monitoring: No
Wall Sleeve Included: No
Control Type: Digital
Remote Control Included: Yes
View more
$1,429.00
OR
FREE Delivery Available
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Amana
Model: AE183J35AA
Dimensions
Width: 25 49/50 Inch
Depth: 25 49/50 Inch
Height: 17 Inch
Capacity
Cooling Capacity (BTU): 17,200 BTU
Heating Capacity (BTU): 9,000 BTU
CFM Room Circulation: 500 CFM
Smart
WiFi: No
Alexa: No
Google Home: No
Remote Control: Yes
Remote Monitoring: No
Remote Diagnostics: No
Dash Replenishment: No
Smart Accessory Required: No
AI Technology: No
Features
Type: Window
Wall Sleeve Included: No
Maximum Cooling Amps: 7.8 Amps
Maximum Cooling Watts: 1,570 Watts
Maximum Heating Amps: 14.6 Amps
Maximum Heating Watts: 3,040 Watts
Heat: Electric Heat
Energy Efficiency Rating: 11.79
Control Type: Digital
Remote Control Included: Yes
PTAC: No
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

17,200 BTU Window Air Conditioner
The AE183J35AA is a window (or through-the-wall) HVAC unit combining cooling and electric heating modes.

Specifications

Overview
Voltage:
230/208
Discharge Air:
Side
Auto Air Swing:
Yes
Slide Out Filter:
Yes
Chasis Weight:
117 lbs
Shipping Weight:
132 lbs
Cooling BTU:
17,200
Amps:
7.8
Watts:
1570
CFM:
500
EER:
11.79
CEER:
10.7
Electric Heat:
9,000
Amps:
14.6
Watts:
3040
Height:
17
Width:
25.98
Depth:
25.98
Depth with Front:
27.36

Features

Cooling Capacity
  • It delivers 17,200 BTU/h of cooling capacity.
Electric Heat
  • It also includes 9,000 BTU/h of electric strip heat for supplemental heating.
Refrigerant
  • It uses R-32 refrigerant.
Electrical Supply
  • The electrical supply required is 208/230 V, single phase, drawing 20 amps.
Outer Sleeve
  • It is designed so that the outer case sleeve allows the inner chassis to be removed for servicing.
Bottom Sleeve
  • It also offers a solid bottom outer case sleeve to enable tighter thru-the-wall installations.
Controls
  • Control is via digital controls and a handheld infrared remote.
Warranty
  • It is used in both residential and commercial applications (with corresponding warranty terms).
