Description
20 Inch Built-In Undercounter Refrigerator with 3.32 cu. ft. Capacity
Accucold offers a quality selection of 20" Built-In Undercounter Healthcare All-Refrigerators designed for installation under lower ADA Compliant counters, with advanced features for user convenience.
The ADA404REF is sized 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital-grade cord with a green dot plug for added safety in high-traffic areas. Powerful magnetic gaskets ensure a tight seal.
Inside, the ADA404REF is designed to operate between +2°C and +8°C as recommended for storing select pharmaceuticals and other medical supplies. An LED light on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu. ft. interior. Adjustable wire shelves allow you to rearrange the interior to suit your storage needs. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low-temperature alarms provide added security should the temperature go beyond the set point and the open-door alarm sounds if the door is ajar beyond one minute for added peace of mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their monitoring equipment. With its slim dimensions and user-friendly features, it makes an ideal choice for various facilities. For a complete set, pair this unit with the matching -20ºC ADA305AF all-freezer.
Specifications
Product Overview
Refrigerator Features
Temperature Range:
2 to 8°C
Dimensions & Weights
Height of Cabinet:
31 3/4"
Width with Door Open:
20 1/4"
Depth with Handle:
24 3/8"
Depth with door at 90°:
40 1/4"
Compressor Step Height:
6 1/4"
Compressor Step Width:
16 1/4"
Compressor Step Depth:
6"
Claims and Certifications
US Electrical Safety:
ETL
Canadian Electrical Safety:
ETL-C
Electrical Specifications
Voltage/Frequency:
115 V AC/60 Hz
Warranty
Parts & Labor Warranty:
1 Year
Compressor Warranty:
5 Years
Features
3.32 Cu. Ft. Capacity
- Provides a compact storage unit that is ideal for providing extra storage to small spaced settings
4 Adjustable Wire Shelves
- Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
Factory-Installed Lock
- Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
Adjustable Digital Thermostat
- Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
Interior Light
- Front-located LED light ensures entire interior is lit when door opens
Access Port
- Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
Temperature Alarms
- User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Open Door Alarm
- Audible alarm will sound if the door is left ajar for over a minute
2 to 8°C Operation
- Designed to safely store select pharmaceuticals and other materials with strict temperature requirements
Automatic Defrost
- Reduced user maintenance with an auto defrost system
Internal Fan
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Flat Door Liner
- Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
3 Inch Thick Door
- Improved insulation for an efficient performance; If installing this freezer against a wall, please see our drawings to ensure adequate space
- Note: Due to the oversized design, the door does not open in its own radius
Reversible Door
- User-reversible door swing for added flexibility to best accommodate your setting
Built-In Capable
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
Matching All-Freezer

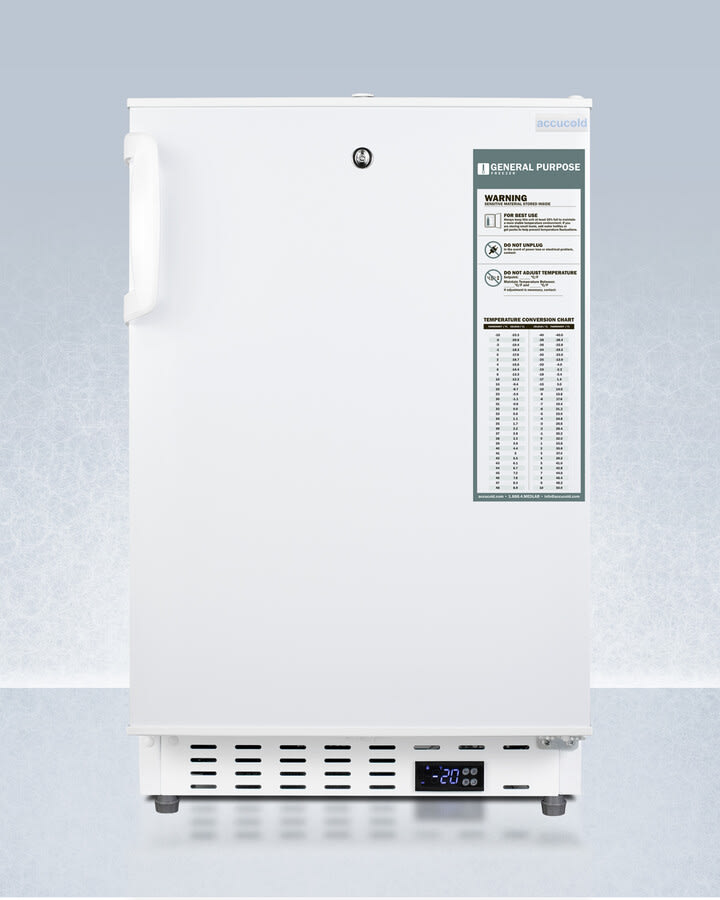

- This unit can be paired with the ADA305AF all-freezer for a complete set
100% CFC Free
- Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
ADA Compliant
- 32" height allows easy installation under lower ADA compliant counters
Additional Features
- Hospital Grade Cord With 'Green Dot' Plug
- Fully Finished White Cabinet
