Description
Pharmaceutical Series 20 Inch Built-In All-Freezer with 2.65 cu. ft. Capacity
Accucold's Pharmaceutical Series features refrigeration specially designed to meet current CDC and VFC guidelines for vaccine storage, with built-in choices sized to fit under ADA Compliant counters.
The ACF33LCAL all-freezer is sized at just under 32" high, with a front-breathing design for built-in installation under lower ADA Compliant counters and a fully finished cabinet that also allows freestanding use. Its user-reversible door includes a side-mounted handle for added convenience, and a factory-installed keyed lock is located towards the top of the unit for convenient security. For optimum temperature management, the ACF33LCAL features an external control panel, allowing users to adjust and monitor the temperature without opening the door. It is equipped with a thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit (as recommended by the CDC and VFC). The buffered temperature probe is encased in a bottle filled with glass beads and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. A pre-installed 3/8" probe hole is included for users who wish to install additional monitoring equipment as needed. (Note: for this unit with a NIST Calibrated thermometer, see the ACF33LCAL.) Inside, the 2.65 cu. ft. interior includes two adjustable wire shelves for optimum circulation, with one center fixed shelf to keep the temperature probe in place. The foamed-in-place cabinet and door liner afford added insulation of the interior for improved temperature stability, while an internal fan helps to evenly cool the interior from top to bottom. LED lighting helps to provide a clean, energy-efficient view. At just under 20" wide, the ACF33LCAL is the perfect storage solution for doctor's offices, veterinary clinics, pharmacies, and similar healthcare environments. For a matching refrigerator, see the ACR45LCAL (solid door) or ACR46GLCAL (glass door).
NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.
Specifications
Overview
Freezer Features
Fan Type:
Interior and Exterior
Temperature Range:
-30 to -11.6°C /-22 to +11°F
Electrical Specifications
Voltage/Frequency:
115 V AC/60 Hz
Dimensions & Weight
Height of Cabinet:
31 3/8"
Depth with Handle:
23 5/8"
Depth with door at 90°:
41"
Shipping Weight:
105.5 lbs.
Compressor Step Height:
3 1/2"
Compressor Step Width:
15"
Compressor Step Depth:
4 3/4"
Warranty
Parts & Labor Warranty:
1 Year
Compressor Warranty:
5 Years
Claims & Certifications
US Electrical Safety:
ETL
Canadian Electrical Safety:
ETL-C
Features
3 Wire Shelves
- Rearrange freezer space to accommodate all sizes or remove shelves for simple cleanup
High/Low Temperature Alarm
- Audible alarm sounds if the interior temperature rises or falls out of set range
Temperature Memory Function
- Unit will retain its last settings when power is restored in the event of power loss
NIST Calibrated External Temperature Display
- Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
LED Lighting
- Attractively illuminates the interior in a gentle white hue for easy viewing
Internal Fan
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Buffered Temperature Probe
- Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
External Temperature Readout
- Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
3/8" Access Port
- Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
Factory Installed Lock
- Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Hospital Grade Cord with 'Green Dot' Plug
- Secure three-pronged cord for added unit safety in high traffic areas
Flat Door Liner
- Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Self-closing Door
- Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
Reversible Door
- User-reversible door swing makes it easy to adjust to your setting as needed
Frost-free
- No-frost operation for minimum user maintenance
Digital Thermostat
- Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience
100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Certificate of Calibration Included
- Calibrated to NIST standards in our ISO/IEC 17025:2017 accredited laboratory, with a certificate included for your records
Matching Refrigerator

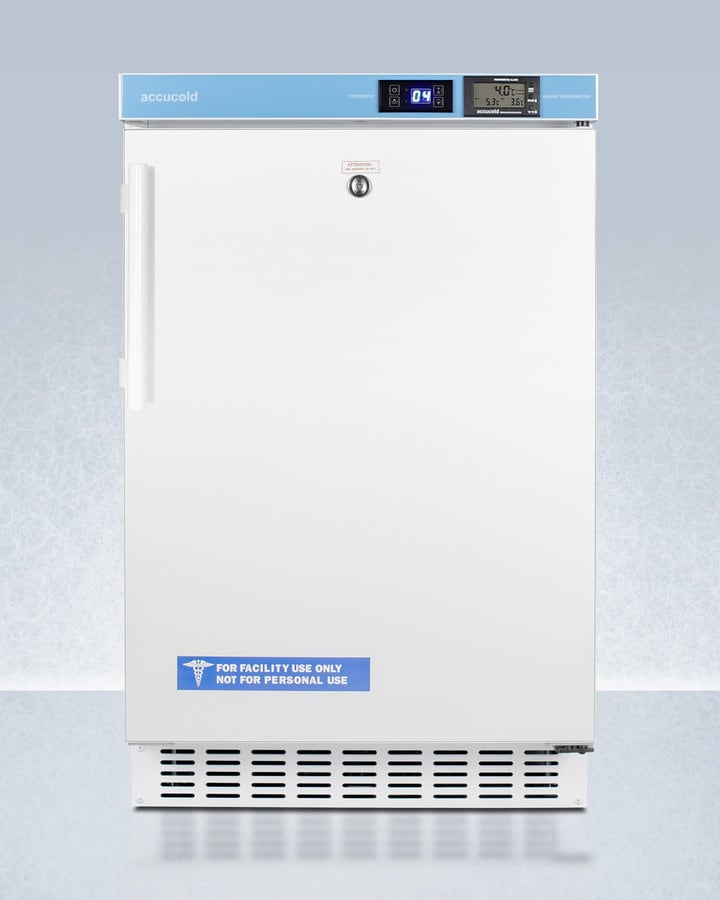

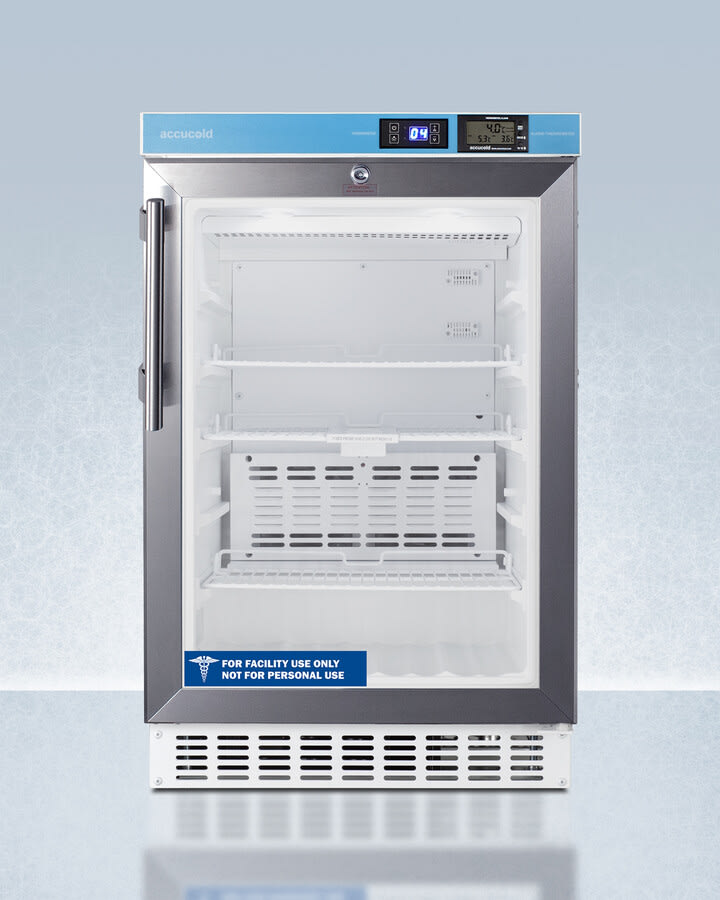

- Pair with Accucold ACR45L (solid door) or ACR46GL (glass door) all-refrigerators to create a matching side-by-side or stackable set
Vaccine Freezer
- Purpose-built to meet the recommendations of the CDC and VFC for reliable vaccine storage
Total Capacity
Additional Features
- Fully Finished White Cabinet
