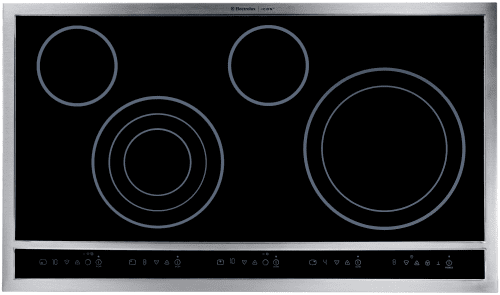

Electrolux ICON Designer E30EC70FSS - View 1
Electrolux ICON Designer E30EC70FSS - View 1
Electrolux ICON Designer E30EC70FSS - View 2
Electrolux ICON Designer E30EC70FSS - View 3
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Electrolux ICON Designer E30EC70FSS
Authorized
Dealer

Electrolux ICON Designer
E30EC70FSS
30 Inch Drop-In Electric Cooktop with Expandable Flexible Cooking Zones, Precision Electronic Touch-Controls and Hot Surface Indicator

Top Quality Store on Google
quick specs
Sabbath Mode: No
Number of Burners: 4
Style: Smoothtop
Type: Drop-In
Control Type: Touch Sensor
Downdraft Venting: No
Actual Width: 30 3/4 Inch
Grill: No
Griddle: No
Hot Surface Indicator Light: Yes
Induction: No
Warranty Terms: 1 year
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: Electrolux
Series: ICON Designer
Model: E30EC70FSS
Warranty Terms: 1 year
?
Appearance
Fuel Type: Electric
Number of Burners: 4
Style: Smoothtop
Type: Drop-In
Control Type: Touch Sensor
Color: Stainless Steel
Surface Color: Black
Trim Color: Stainless Steel
Downdraft Venting: No
Dimensions
Actual Width: 30 3/4 Inch
Actual Depth: 21 1/2 Inch
Actual Height: 5 Inch
Cutout Width: 29 7/8 Inch
Cutout Depth: 20 1/8 Inch
Shabbos Compliance
Sabbath Mode: No
Burner
Burner 1 Output: 2700
Burner 2 Output: 2700
Burner 3 Output: 1200
Gas Cooktop Features
Grill: No
Griddle: No
Electric Cooktop Features
Hot Surface Indicator Light: Yes
Induction: No
Technical Details
ADA Compliant: Yes
Amps: 40
Voltage: 240/208 Volts
GTIN
UPC: 057112094755
Are you a Trade Pro? Join Now

Description

The E30EC70FSS features four expandable, flexible elements to fit a variety of pan sizes for added cooking flexibility. The glass cooktop is flat, smooth and easy to clean and maintain and undisturbed with knobs for a look that is sleek and flush with your countertop.

Specifications

Dimensions & Weight
Height:
5"
Width:
30 3/4"
Depth:
21 1/2"
Cutout Height:
5"
Cutout Width:
29 7/8" min. ~ 30" max.
Cutout Depth:
20 1/8" min. ~ 20 1/4" max.
Product Weight:
42 lbs.
Shipping Weight:
48 lbs.
Features
Configuration:
4 Electric Elements
Black Ceramic Glass Surface:
Yes
6" Element:
2 - 1200W
5" to 7" to 9" Element:
1 - 1000W/1800W/2700W
9" to 12" Element:
1 - 1700W/2700W
Precision Touch-Controls:
Yes
Accessories
Griddle:
Optional
Specifications
Power Cable Location:
Middle
Amps @ 240/208 Volts:
33.0/29.0 Amps
Connected Load Rating - 240/208 Volts:
7.8 kW/5.9 kW
Electrical Requirements:
Single phase 3- or 4-wire cable, 120/240 V or 120/208 V, 60 Hz, fused on both sides of line with ground
Armored Electrical Cable:
Included

Features

Expandable, Flexible Element Configuration
  • Four Concentric rings in double and triple elements expand to fit a variety of pan sizes for added cooking flexibility.
Ceramic Smoothtop Glass
  • Glass cooktop is flat, smooth and easy to clean and maintain.
Electronic Touch-Controls
  • The smooth cooktop surface is undisturbed with knobs for a look that is sleek and flush with your countertop.
Hot Surface Indicator
  • For added safety, when an element is still hot, a blue LED indicator will stay on until surface cools.
Eligible for Platinum Star Limited 3 Year Warranty
  • Product must be registered within 60 days of purchase, delivery or closing. Only valid for products purchased on our after Jul 1, 2013.
