Home > Air Conditioners > Room Air Conditioners > YS10M10

Quick Specs

Product Information
Brand: Friedrich
Series: Kuhl Plus Series
Model: YS10M10
Dimensions
Width: 25 15/16 Inch
Depth: 29 Inch
Height: 15 15/16 Inch
Features
Type: Window / Wall
Chassis Type: Slide Out
Wall Sleeve Included: No
Maximum Cooling Amps: 7.8 Amps
Maximum Cooling Watts: 812 Watts
Heating Capacity (BTU): 7,500 BTU
Maximum Heating Amps: 7.6 Amps
Maximum Heating Watts: 743 Watts
Heat: Heat Pump
CFM Room Circulation: 285 CFM
Energy Efficiency Rating: 11.7
Control Type: Digital
Remote Control Included: Yes
PTAC: No
Window Type: Standard
Technical Details
Energy Star Rated: Yes
ADA Compliant: No
Plug Type: 5-15P
Voltage: 115 Volts

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
Discontinued
No Longer Available

Image Disclaimer

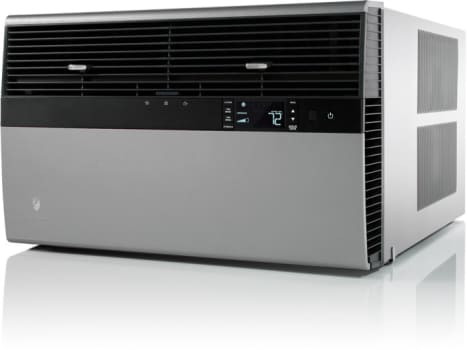

Friedrich Kuhl Plus Series YS10M10

9,500 BTU Room Air Conditioner
  • 743 Watt Heat Pump
  • R-410A Refrigerant
  • 11.7 Energy Efficiency Ratio
  • LCD Panel/Remote Control
Additional Options
Optional Designer Colored Fronts
Add
Designer Colored Front For Sleeve Type S: Deep Red KWREDS preview
Add
Designer Colored Front For Sleeve Type S: Pink Diamond KWPNKS preview
Add
Designer Colored Front For Sleeve Type S: Cobalt Blue KWBLUS preview
Other
Add
Window Mounting Kit with Side Panel Louvers KWIKSA preview
Add
Universal Air Conditioner Support - Heavy Duty (160 Lbs. Support) AC160 preview
Add
Universal Air Conditioner Support - Light Duty (80 Lbs. Support) AC080 preview
Add
Foam Weather Seal For Air Conditioner 5305516311 preview

Quick Specs

Product Information
Brand: Friedrich
Series: Kuhl Plus Series
Model: YS10M10
Dimensions
Width: 25 15/16 Inch
Depth: 29 Inch
Height: 15 15/16 Inch
Features
Type: Window / Wall
Chassis Type: Slide Out
Wall Sleeve Included: No
Maximum Cooling Amps: 7.8 Amps
Maximum Cooling Watts: 812 Watts
Heating Capacity (BTU): 7,500 BTU
Maximum Heating Amps: 7.6 Amps
Maximum Heating Watts: 743 Watts
Heat: Heat Pump
CFM Room Circulation: 285 CFM
Energy Efficiency Rating: 11.7
Control Type: Digital
Remote Control Included: Yes
PTAC: No
Window Type: Standard
Technical Details
Energy Star Rated: Yes
ADA Compliant: No
Plug Type: 5-15P
Voltage: 115 Volts

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
  • Description
  • Energy Info
  • Specifications
  • Features
  • Info & Guides
  • Reviews

Description

Since its founding in 1883, Friedrich Air Conditioning Co. has had one manufacturing standard - quality without compromise. Over the years, the company's products have changed, but the commitment to quality has endured.

Today, the fundamental direction of Friedrich is to be the top manufacturer of specialty air treatment products for the worldwide market. Moving the company forward are dedicated employees who are committed to excellence and have a passion to succeed. Friedrich is a company that is respected for a high degree of integrity and professionalism, as well as being recognized as the best in the business. The Friedrich name is synonymous with quality... shaped by the spirit that launched this company over a century ago. Available at AJ Madison.

Comfort has a bold new look.
An entirely new, satin silver front with illuminated touch controls places Kühl and Kühl + Heat/Cool at the forefront of room air design. And now you can personalize your space with optional designer color fronts. New, advanced digital controls intuitively provide comfort, convenience and ease of use and allow for a range of programmability previously only associated with high-end central air systems.

At the heart of each unit, you'll find the durable components and heavy duty construction that you expect from Friedrich. Engineering details like heavy gauge steel, rifled copper tubing, high tech aluminum fins with sine wave technology, aluminum end plates that reduce corrosion, totally-enclosed commercial grade motors, high efficiency compressors, vibration absorbing technology and insulated air plenums. All details that ensure years of reliable performance and quiet operation.

Energy Info

This air conditioner has an Energy Efficiency Rating of 11.7 and has an estimated yearly operating cost of $67.54.

The estimated yearly operating cost is based on the 2011 national average cost of $.1109 cents per kWh for electricity and an estimated number of operating hours of 750 hours. Your operating cost will depend on your utility rates and usage.

Specifications

Specifications
Cooling Capacity:
9,500 BTU
Heating Capacity:
7,500 BTU
Volts Rated:
115 Volts
Cooling Amps:
7.8 Amps
Cooling Watts:
812 Watts
Heating Amps:
7.6 Amps
Heating Watts:
743 Watts
COP:
3.0
Energy Efficiency Ratio (ERR):
11.7
Moisture Removal:
1.9 Pints/Hr.
Room Side Air Circulation:
285 CFM
Sleeve Type:
S
Circuit Rating/Breaker
Circuit Rating Breaker or T-D Fuse:
125V - 15A
Plug Face (NEMA#):
5-15P
Power Cord Length:
6 Ft.
Dimensions and Weights
Width:
25 15/16"
Depth with Front:
29"
Shell Depth to Louvers:
8 3/4"
Height:
15 15/16"
Min. Extension Into Room:
5 3/4"
Min. Extension Outside:
16 15/16"
Window Width - Min.:
27 3/8"
Window Width - Max.:
42"
Net Weight:
113 Lbs.
Thru-the-Wall Installation Finished Hole
Width:
26 3/16"
Max. Depth:
7 3/8"
Height:
16 3/16"

Features

***NOTE: Operates on 115 volt and is not equipped with supplemental heat. Will not provide heat at temperatures below 40°F.
Friedrich room air conditioners are designed to operate in outdoor temperatures from 50°F to 115°F.
Comfort and Convenience
  • Commercial grade durability.
  • Optional wired wall thermostat.
  • Built-in programmable 7 day thermostat.
  • 24 hr. timer.
  • 3 cooling, heating and fan-only speeds.
  • Automatic temperature and fan speed adjustment.
  • Comfortwatch technology samples the air to more accurately maintain the set temperature.
  • 8-way air flow control.
  • Auto-changeover from cool to heat, or heat to cool, to maintain desired temperature.
  • Temperature readout can alternately display set temperature, room temperature and outdoor temperature, or digital clock as selected.
  • Optional control panel lockout.
  • Scratch resistant cabinet.
  • LCD panel auto dims if not in use.
  • Nightlight mode.
  • 7 yr. battery provides back up system that saves settings if power is interrupted.
Superior Sound Reduction Technology
  • Steel inner wall and extra dense insulation materials block outdoor noise.
  • Vibration isolating design and components diminish traditional operating noise.
  • Precision engineering maximizes air flow while delivering ultraquiet operation.
Superior Filtration
  • Superior fresh air intake and stale air exhaust vent.
  • Washable, antimicrobial air filter.
  • Optional premium filter when used in conjuction with standard filter provides superior air filtration with ratings as high as MERV 6, while also adsorbing odors and reducing ozone and VOCs.
  • Hinged door for easy filter access for easier maintenance.
  • Electronic maintenance indicators include check filter reminder and error code storage.
Earth Friendly
  • Auto Fan mode saves money by conserving energy.
  • Energy Star qualified.
  • Environmentally-friendly R-410A refrigerant.
  • Recyclable packaging.
  • RoHS compliant.
Safety and Security Features
  • EntryGard anti-intrusion protection-steel retaining wire secures the chassis to the sleeve to deter 'kick-in' intrusion.
  • Electrical current protected powercord.
  • Insect barrier.
  • Protective rear grille.
Installation Features
  • Install in a window or thru the-wall.
  • Slide-out chassis for more permanent installation and easier access for maintenance.
  • Optional heavy duty window installation hardware.
  • Rugged hardboard side panels for a more permanent installation.
  • Power cord can run either left or right.
  • Firm grip handles for easier chassis installation and removal.
  • Front cover attaches easily and securely. Nut driver included.
