Quick Specs

Product Information
Brand: GE
Model: JP202DWW
Appearance
Fuel Type: Electric
Style: Coil
Cooktop: Cooktop
Color: White
Surface Color: White
Dimensions
Actual Width: 21 1/4 Inch
Actual Depth: 16 5/8 Inch
Actual Height: 3 1/4 Inch
Cutout Width: 20 1/8 Inch
Cutout Depth: 16 1/8 Inch
Burner Output
Set 1 QTY: 1
Set 1 Output: 2150
Set 2 QTY: 1
Set 2 Output: 2100
Grill: No
Griddle: No
Function
Burners / Elements: 2
Control Type: Knobs
Downdraft Venting: No
Induction: No
Hot Surface Indicator Light: No
Sabbath Mode: No
Technical Details
ADA Compliant: No
Modules Required: No
Amps: 20
Voltage: 240/208 Volts

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
List Price:
$309.00
Price:
$272.10
& FREE Nationwide Delivery
on orders over $499
You Save:
$36.90 Ends 9/30

Only 5 left in stock
Warranty
5 Year In Home Service - 50% Cash Back! +$139.99
3 Year In Home Service +$69.99
Decline Protection

Image Disclaimer

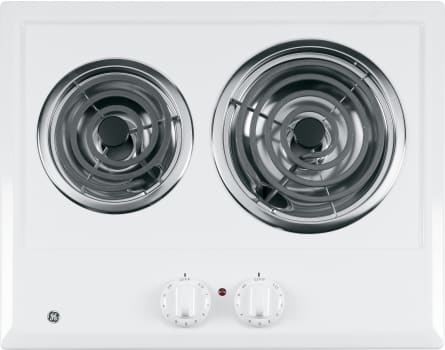

GE JP202DWW

21 Inch Electric Cooktop
4.4
Read (8)
21 Inch Electric Cooktop with 2 Coil Elements, Removable Drip Bowls, Upfront Controls and ADA Compliant: White
Color: White

Quick Specs

Product Information
Brand: GE
Model: JP202DWW
Appearance
Fuel Type: Electric
Style: Coil
Cooktop: Cooktop
Color: White
Surface Color: White
Dimensions
Actual Width: 21 1/4 Inch
Actual Depth: 16 5/8 Inch
Actual Height: 3 1/4 Inch
Cutout Width: 20 1/8 Inch
Cutout Depth: 16 1/8 Inch
Burner Output
Set 1 QTY: 1
Set 1 Output: 2150
Set 2 QTY: 1
Set 2 Output: 2100
Grill: No
Griddle: No
Function
Burners / Elements: 2
Control Type: Knobs
Downdraft Venting: No
Induction: No
Hot Surface Indicator Light: No
Sabbath Mode: No
Technical Details
ADA Compliant: No
Modules Required: No
Amps: 20
Voltage: 240/208 Volts

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
  • Description
  • Specifications
  • Features
  • Info & Guides
  • Reviews

Description

GE Consumer and Industrial spans the globe as an industry leader in major appliance, lighting and integrated industrial equipment systems and services. They provide solutions for commercial, industrial and residential use in more than 100 countries which uses innovative technologies and "ecomagination." It's a GE initiative to aggressively bring to market new technologies that help customers and consumers meet pressing environmental challenges to deliver comfort, convenience and electrical protection and control. GE brings imagination to work.

For a low cost way to add some extra burners to your kitchen, upgrade a studio, office, or bar, or just where ever you need a little extra cooking power, this cooktop by GE provides a straightforward solution.

Specifications

Dimensions
Overall Width:
21 1/4"
Overall Depth:
16 5/8"
Overall Height:
3 1/4"
Cutout Width:
20 1/8"
Cutout Depth:
16 1/8"
Minimum Front Counter Clearance:
2 3/4"
Minimum Spacing to Back Wall:
2"
Minimum Spacing to Right Wall:
2"
Minimum Spacing to Left Wall:
2"
Features
Cooktop Surface:
Porcelain-Enameled
Lift-Up Cooktop with Support Rod:
No
8" Heating Elements:
1 Plug-In @ 2100W
6" Heating Elements:
1 Plug-In @ @ 2150W
One-Piece Removable Chrome Drip Bowls:
Yes
Infinite Heat Rotary Controls:
Yes
Control Panel Location:
Upfront
ADA Compliant:
Yes
Surface Element "On" Indicator Light:
Yes
Appearance
Available Colors:
White (WW), Stainless (SS)
Power/Ratings
KW Rating @ 240V:
3.4KW
KW Rating @ 208V:
2.5KW
Amps @ 240V:
20Amps
Amps @ 208V:
20Amps

Features

Key Features
  • Compact Cooktop
  • Smaller cooktop is ideal for 21" cooktop installations.
  • One 8" and One 6" Plug-In Calrod Heating Element
  • Provides consistent and even heat on the cooktop with a plug-in element that is removable for easy cleaning.
  • Chrome Removable One-Piece Drip Bowls
  • Contain minor spills and are removable for easy cleaning.
  • Heating Element "On" Indicator Light
  • Illuminates when the cooking surface is activated.
Installation Notes
  • Required free area between the bottom of the cooktop and any combustible material is 1 1/2" minimum.
  • Free area not required when installing over wall oven.
  • Approved for use over GE under sink dishwasher model GSM2100.
  • Refer to cooktop installation instructions packed with product for current dimensional data.
