Home > Cooking Appliances > Wall Ovens > Single Wall Ovens > FGB24T3EC

Quick Specs

Product Information
Brand: Frigidaire
Model: FGB24T3EC
Appearance
Fuel Type: Gas
Style: Single
Microwave: No
Speed Oven: No
Steam Oven: No
Color: Stainless Steel
Stainless Steel Handle: No
Viewing Window: Yes
Drawer: Broiler
Clock: Digital
Dimensions
Cutout Width: 22 1/2 Inch
Cutout Depth: 24 Inch
Cutout Height: 42 1/8 Inch
Exterior Width: 24 Inch
Exterior Depth: 21 Inch
Exterior Height: 42 3/8 Inch
Oven Features
Capacity: 2.7 Cu. Ft.
Convection: No
Self-Cleaning: No
Control Type: Touchpad
Broiler Element Location: Bottom
Delay Bake: No
Digital Temperature Display: No
Interior Oven Light: Yes
Oven Racks: 2
Proofing: No
Removable Door: No
Sabbath Mode: No
Temperature Probe: No
Timer: Yes
Technical Details
Star-K Certified: No
ADA Compliant: No
BTU: 18000
Undercounter Installable: No
LP Conversion: Yes
Amps: 15
Voltage: 120 Volts

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
Discontinued
No Longer Available

Image Disclaimer

Authorized
Dealer

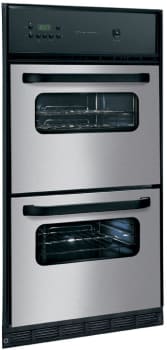

Frigidaire FGB24T3EC
24 Inch Single Gas Wall Oven

  • 2.7 cu. ft. Oven Capacity
  • Manual Clean
  • Ready-Select Controls
  • Bright Oven Lighting
  • 2.7 cu. ft. Lower Broiler
FREE Nationwide Delivery
Color: Real Stainless Steel
Real Stainless Steel
FGB24T3EC

Quick Specs

Product Information
Brand: Frigidaire
Model: FGB24T3EC
Appearance
Fuel Type: Gas
Style: Single
Microwave: No
Speed Oven: No
Steam Oven: No
Color: Stainless Steel
Stainless Steel Handle: No
Viewing Window: Yes
Drawer: Broiler
Clock: Digital
Dimensions
Cutout Width: 22 1/2 Inch
Cutout Depth: 24 Inch
Cutout Height: 42 1/8 Inch
Exterior Width: 24 Inch
Exterior Depth: 21 Inch
Exterior Height: 42 3/8 Inch
Oven Features
Capacity: 2.7 Cu. Ft.
Convection: No
Self-Cleaning: No
Control Type: Touchpad
Broiler Element Location: Bottom
Delay Bake: No
Digital Temperature Display: No
Interior Oven Light: Yes
Oven Racks: 2
Proofing: No
Removable Door: No
Sabbath Mode: No
Temperature Probe: No
Timer: Yes
Technical Details
Star-K Certified: No
ADA Compliant: No
BTU: 18000
Undercounter Installable: No
LP Conversion: Yes
Amps: 15
Voltage: 120 Volts

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
  • Description
  • Specifications
  • Features
  • Info & Guides
  • Reviews

Description

The FGB24T3E featurs a color-coordinated glass control panels and towel-bar handles. It has a manual clean porcelain oven with a full-sized lower broil compartment. Other features include an electronic clock/timer, electronic ignition and a removable window door.

Bottom oven is a broiler only.

Specifications

Dimensions & Weights
Overall Width:
23 17/32"
Wrapper Width:
22 5/16"
Overall Depth:
21"
Depth with Doors Open 90°:
40 3/8"
Overall Height:
42 3/8"
Wrapper Height:
41 13/16"
Cutout Width:
22 1/2" min.
Cutout Depth:
24" min.
Cutout Height:
42 1/8" min.
Oven Interior Width:
19"
Oven Interior Depth:
17 5/8"
Oven Interior Height:
14"
Product Weight:
140 lbs.
Approximate Shipping Weights:
165 lbs.
Features
Oven Control/Timing System:
Ready-Select
Window:
Large
Exterior Door Finish:
Real Stainless Steel (C)
Handle Design:
Black (C)
Oven Cleaning System:
Manual Clean
Oven Controls
Bake/Broil:
Yes/Variable (Hi - Lo)
Convection Conversion:
No
Convection Bake/Broil/Roast:
No
Quick Bake Convection:
No
PowerPlus/Quick Preheat:
No
My Favorite:
No
Chicken Nugget Button:
No
Pizza Button:
No
Keep Warm:
No
Add-a-Minute:
No
Delay Bake:
No
Self-Clean:
No
Rapid/Quick Clean Option:
No
Delay Clean:
No
Kitchen Timer:
Yes
Timed Cook Option:
No
Control Lock:
No
Auto Oven Shutoff:
No
Oven Lock-Out:
No
Upper Oven Features
Capacity:
2.7 cu. ft.
Convection System:
No
Oven Light:
1
Hidden Bake Element:
No
Rack Configuration:
2 Racks
Baking System:
Regular
Broiling System:
No
Bake Element:
18,000 BTUs
Lower Broil Features
Capacity:
2.7 cu. ft.
Convection System:
No
Oven Light:
1
Hidden Bake Element:
No
Rack Configuration:
2 Racks
Baking System:
N/A
Broiling System:
Vari-Broil
Bake Element:
18,000 BTUs
Certifications
A.D.A. Compliant:
No
Sabbath Mode (Star-K Certified):
No
Specifications
Power Supply Connection Location:
Right Bottom Rear
Gas Supply Connection Location:
Right Bottom Rear
Voltage Rating:
120V/60Hz
Connected Load (kW Rating) @ 120 volts:
.001
Amps @ 120 volts:
5.0
Minimum Circuit Required:
15 Amps
Approved for Under-Counter Installation:
No

Features

Attractive Stainless Steel Exterior

Attractive Stainless Steel Exterior

Stainless steel exterior adds a high-end aesthetic to any kitchen. Now the standard in kitchens around the world, this finish pairs perfectly with other Frigidaire stainless steel appliances.

Ready-Select® Controls

Ready-Select® Controls

Frigidaire’s simple control panel makes adjusting temperatures and other settings a breeze. Ready-Select® controls are simple and easy to use, while always in reach.
