Quick Specs

Product Information
Brand: Frigidaire
Model: FES366EC
Appearance
Fuel Type: Electric
Style: Slide-In
Color: Stainless Steel
Cooktop: Smoothtop
Continuous Grates: No
Stainless Steel Handle: No
Viewing Window: Yes
Drawer: Storage
Clock: Yes
Dimensions
Width: 30 Inch
Depth: 28 Inch
Height: 35 5/8 Inch
Interior Width: 24 1/8 Inch
Interior Depth: 18 1/32 Inch
Interior Height: 16 1/2 Inch
Burner Output
Set 1 QTY: 1
Set 1 Output: 2700
Set 2 QTY: 1
Set 2 Output: 2500/1200
Set 3 QTY: 2
Set 3 Output: 1200
Cooktop Features
Burners / Elements: 4
Cooktop Control Type: Knobs
Downdraft Ventilation: No
Modules Required: No
Hot Surface Indicator Light: Yes
Oven Features
Primary Oven Capacity: 4.2 Cu. Ft.
Oven Control Type: Touchpad
Digital Temperature Display: Yes
Timer: Yes
Convection: Yes
Self-Cleaning: Yes
Delay Bake: Yes
Proofing: No
Sabbath Mode: No
Broiler Element Location: Top
Temperature Probe: No
Interior Oven Light: Yes
Racks: 2
Removable Door: Yes
Broiler Pan Included: No
Technical Details
Oven Wattage: 3400
Amps: 40
Voltage: 240/208 Volts
GTIN
UPC: 057112089614

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
Discontinued
No Longer Available

Image Disclaimer

Authorized
Dealer

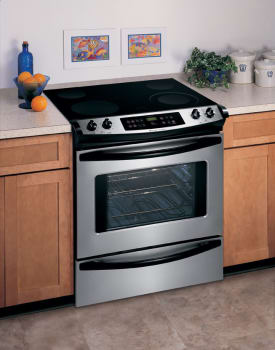

Frigidaire FES366EC
30 Inch Slide-In Electric Range

30 Inch Slide-In Electric Range with 4 Radiant Elements & SpeedBake Convection System: Stainless Steel
Color: Stainless Steel
Stainless Steel
FES366EC

Quick Specs

Product Information
Brand: Frigidaire
Model: FES366EC
Appearance
Fuel Type: Electric
Style: Slide-In
Color: Stainless Steel
Cooktop: Smoothtop
Continuous Grates: No
Stainless Steel Handle: No
Viewing Window: Yes
Drawer: Storage
Clock: Yes
Dimensions
Width: 30 Inch
Depth: 28 Inch
Height: 35 5/8 Inch
Interior Width: 24 1/8 Inch
Interior Depth: 18 1/32 Inch
Interior Height: 16 1/2 Inch
Burner Output
Set 1 QTY: 1
Set 1 Output: 2700
Set 2 QTY: 1
Set 2 Output: 2500/1200
Set 3 QTY: 2
Set 3 Output: 1200
Cooktop Features
Burners / Elements: 4
Cooktop Control Type: Knobs
Downdraft Ventilation: No
Modules Required: No
Hot Surface Indicator Light: Yes
Oven Features
Primary Oven Capacity: 4.2 Cu. Ft.
Oven Control Type: Touchpad
Digital Temperature Display: Yes
Timer: Yes
Convection: Yes
Self-Cleaning: Yes
Delay Bake: Yes
Proofing: No
Sabbath Mode: No
Broiler Element Location: Top
Temperature Probe: No
Interior Oven Light: Yes
Racks: 2
Removable Door: Yes
Broiler Pan Included: No
Technical Details
Oven Wattage: 3400
Amps: 40
Voltage: 240/208 Volts
GTIN
UPC: 057112089614

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
  • Description
  • Specifications
  • Features
  • Info & Guides
  • Reviews

Description

The SpeedBake Convection System featured on the FES366E is initiated at the touch of a switch, and is designed to deliver premium performance at a modest price, as well as being up to 30% faster!

Specifications

Dimensions & Weight
Height:
35 5/8" min./36 3/8" max.
Width:
30"
Depth to Notch on Back of Console:
24 3/4"
Depth to Extreme Protusion:
28"
Depth w/ Door Open 90&#176 Open:
45 1/4"
Cutout Width:
30"
Cutout Depth:
21 3/4" min./22 1/8" max.
Cutout Height:
35 5/8" min./36 5/8" max.
Interior Width:
24 1/8"
Interior Height:
16 1/2"
Interior Depth:
18 1/32"
Product Weight:
149 lbs.
Shipping Weight:
169 lbs.
Specifications
Oven Capacity:
4.2 cu. ft.
Connected Load (kW Rating) 240/208 Volts:
11.0/8.3
Amps @ 240/208 Volts:
45.8/39.9
Minimum Circuit Required:
40 Amps
Armored Electrical Cable:
Yes
Bake Element Wattage 240/208 Volts:
3400/2554
Broil Element Wattage 240/208 Volts:
2750/2065
Control Panel Features
EasySet Electronic Oven Control:
ES350
Electronic Clock/Timer/Temperature Display:
Yes
Automatic Oven:
Delay, Cook & Off
Automatic Oven Shut-Off:
12 Hour
F&#176 or C&#176 Programmable:
Yes
Speed Clean:
Yes
Child Lockout Controls:
Yes
Cooktop Features
Smooth Ceramic Glass Cooktop:
Black
6" to 9" Expandable Element:
1 (1200W/2500W)
9" Radiant Element:
1 (2700W)
6" Radiant Element:
2 (1200W)
Hot-Surface Indicator Light:
1 Positions
Oven Features
SpeedBake Convection System:
Yes
Self-Cleaning Oven:
Yes w/ Auto-Latch Safety Lock
Dual Radiant Baking System:
Yes
Vari-Broil Temperature Control:
Hi/Lo
Six-Pass Broil Element:
Yes
Interior Oven Lighting:
1 (Automatic/Integrated)
Porcelain Broiler Pan:
Yes
Conventional Oven Racks:
2
Oven Door Style
Removable Window Door:
Stainless Steel
Door Handle:
Black UltraSoft
Visualite Window:
Extra-Large
Drawer Features
Removable Storage Drawer:
Stainless Steel
Drawer Handle:
Black UltraSoft
Extendable Drawer Glides:
Yes

Features

Features
  • 4.2 Cu. Ft. Self-Cleaning Oven with Auto-Latch Safety Lock
  • EasySet 350 Electronic Oven Control
  • EasyCare Genuine Stainless Steel
  • Stainless Steel Control Panel
  • Slim-Profile, Stainless Steel Door with Extra-Large, Clear Glass Visualite Window
  • Black UltraSoft Handles
  • Ceramic Smoothtop Cooking Surface
  • 1 - 6" to 9" Expandable Element
  • 1 - 9" Radiant Element
  • 2 - 6" Radiant Elements
  • Hot-Surface Indicator Light
  • Speed Clean
  • SpeedBake Convection System
  • Dual Radiant Baking System
  • 3400W Bake/2750W Broil
  • Vari-Broil - 2 Position (Hi/Lo)
  • 2 Oven Racks
  • Oven Light (Automatic & Integrated)
  • Storage Drawer with Extendable Glides, Stainless Steel Drawer Front and Handle
