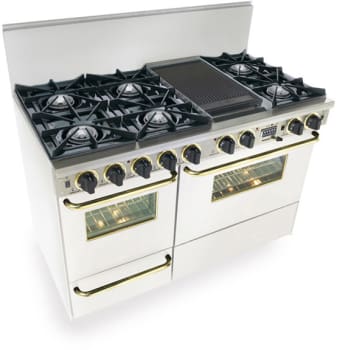

FiveStar WTN5257SW

48" Pro-Style Dual-Fuel Natural Gas Range with 6 Open Burners, Vari-Flame Simmer on Front Burners, 3.69 cu. ft. Convection Oven, Self-Cleaning and Double Sided Grill/Griddle: White with Brass Package

Your Price: $7,089.00

Qty:

Price Match Policy Price Match Policy
Printer Friendly Page Print
Share this item:

Color Options
Select Black $6,812.00
Select White $6,812.00
Select Black with Brass Package $7,089.00
Selected White with Brass Package $7,089.00
Select Stainless Steel $7,228.00
Select Stainless Steel with Brass Package $7,505.00

Companion Products, Options, and Accessories

FiveStar WTN5257SW

This item

Add selected items to cart

Total price: 0

Additional Options

Add

48" Backguard with 4" Height

(BKG048) preview
+ $251.00
Add

Continuous Grate Kit (6/Kit)

(GRT048)
+ $108.00
Add

48" Range Rear Island Trim Kit

(RBT048)
+ $269.00

Our Recommendations

Add
FiveStar FBS48

FiveStar FBS48

48" Backsplash Warming Shelves

$485.00
Description
At FiveStar, their mission is to serve serious home chefs like you. That commitment to the culinary community began in 1935, when Grover Cleveland Brown offered his first cooking products. The tradition carried on through his son, grandson and now his great-grandson, Matthew Brown. Like you, Matthew is passionate about food. And perfection. That's why every FiveStar range is hand-crafted to meet his exacting quality standards right here in America. And every FiveStar feature is designed to ensure you have all of the tools you need to unleash your genius.

The FiveStar 48" range features an interchangeable Lodge Cast Iron Griddle/Grill and six sealed Ultra High-Low burners with one-piece continuous grates or six open Vari-Flame burners with individual continuous grates, giving you the tools to simultaneously sauté, simmer and sear. Also available with side-by-side all-gas ovens, the popular dual-fuel option with one gas and one electric oven with TurboFlow convection brings you the best of both worlds - moist gas heat to seal in the rich flavor and juices of a succulent roast, and drier electric heat for meringues, soufflés, breads and baked goods.

MFG SKU WTN-525-7SW
Specifications
Capacity
Large Oven: 3.69 Cu. Ft.
Small Oven: 2.46 Cu. Ft.
Total: 6.15 Cu. Ft.
Specifications
Open Surface Burner Rating: Natural Gas 14,000 BTU / Liquid Propane 12,000 BTU
Vari-Flame Center Simmer: 400 - 1,050 BTU
Oven/Broiler Burner: 18,000 BTU
Griddle Burner: 10,500 BTU
Gas Service Line: 1/2"
Electrical Requirements: 120/240v, 35 Amps.
Electric Oven: 2,600 Watt Bake Element
Electric Broiler: 3,000 Watt Waist-High Broil Element
Dimensions and Weights
Overall Width: 48"
Overall Depth: 24"
Overall Height: 47"
Large Oven Size (W x D x H): 24" x 19" x 14"
Small Oven Size (W x D x H): 16" x 19" x 14"
Broiling Area: 12 3/8"w x 16"d
Leg Adjustment: 2" Maximum From 35 7/8" to 37 7/8"
Shipping Weight: 400 Lbs.
Net Weight: 350 Lbs.
Features
  • 48" side-by-side double-oven has two broilers, six burners and a double sided grill/griddle.
  • All surface burners designed for maximum heat up to 14,000 BTU on natural gas.
  • Lo-Medium-Hi surface burners with "click" setting at 2,100; 5,200; 14,000 BTU (open burner models).
  • Exclusive Vari-Flame feature on some front burners for extra-low simmer-from 400 to 1,050 BTU (open burner models).
  • Lift-out stainless steel surface burners (open burner models).
  • Individual porcelain drip pans under each burner are dishwasher safe for easy cleaning (open burner models).
  • Extra-heavy, porcelain-covered cast iron burner grates.
  • Large, easy-to-read knobs with push-to-turn safety feature.
  • Large, commercial-type griddle thermostatically controlled for a variety of heat settings.
  • Porcelain grease well for griddle lifts out for easy cleanup (griddle models only).
  • Stainless steel griddle cover/work surface (griddle models only). Cover also fits Barbecue grill.
  • Oven lights with control panel switch.
  • Commercial strength, four-position adjustable oven racks-three in each convection oven, two in all others.
  • Lift-off oven doors.
  • Electric waist-high broiler in dual-fuel models.
  • All-porcelain broiler pan and grill.
  • Gas broiler below each gas oven.
  • Exclusive, pull-out gas broiler tray for easier access.
  • Energy-saving, pilotless electronic ignition with re-ignition on all gas oven and griddle burners.
  • 11" stainless steel backguard for extra wall protection.
  • Designed for zero clearance to cabinets below countertop.
  • Fits standard 24" deep kitchen base cabinets.
  • 4" toe space matches standard kitchen cabinets for unbroken line from cabinet to range.
  • Four heavy-duty adjustable stainless steel leveling legs.
  • Design certified by the American Gas Association for residential use.
  • MFG SKU WTN-525-7SW
  • ** Note: Special Order - Please allow 4 to 8 weeks for Delivery.
Info and Guides

Adobe Acrobat FileUse, Care and Installation Instructions

Adobe Acrobat FileDimension Guide

Adobe Acrobat FileWarranty

You will need Adobe Acrobat Reader to view and print pdf files

Adobe Reader
Product Reviews
Items to Compare

Quick LookQuick Look

Quick Specs
Quick Specs

Appearance

  • Fuel Type : Dual Fuel
  • Style : Freestanding
  • Color : White
  • Cooktop : Open Burner
  • Continuous Grates : Yes
  • Stainless Steel Handle : Yes
  • Viewing Window : Yes
  • Drawer : Broiler
  • Clock : No

Dimensions

  • Width : 48"
  • Depth : 24"
  • Height : 47"
  • Interior Width : 24"
  • Interior Depth : 19"
  • Interior Height : 14"

Burner Output

  • Set 1 QTY : 6
  • Set 1 Output : 14000

Cooktop Features

  • Burners / Elements : 6
  • Cooktop Control Type : Knobs
  • Downdraft Ventilation : No
  • Modules Required : No

Oven Features

  • Primary Oven Capacity : 3.69 Cu. Ft.
  • Secondary Oven Capacity : 2.46 Cu. Ft.
  • Oven Control Type : Knobs
  • Digital Temperature Display : No
  • Timer : No
  • Convection : Yes
  • Self-Cleaning : Yes
  • Delay Bake : No
  • Proofing : No
  • Sabbath Mode : No
  • Broiler Element Location : Bottom
  • Temperature Probe : No
  • Interior Oven Light : Yes
  • Racks : 5
  • Removable Door : Yes

Technical Details

  • Ignition Type : Electronic
  • Oven BTUs : 18000
  • Oven Wattage : 3000
  • LP Conversion : No
  • Amps : 40
  • Voltage : 240/208 Volts
