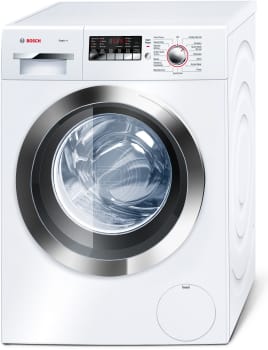

Bosch Axxis Plus Series WAP24202UC
24" Front-Load Washer with 2.2 cu. ft. Capacity, 15 Wash Programs, Super Quick 15 Min. Wash Cycle, AquaStop Leak Protection and Chrome Door


No Longer Available

Replaced by WAT28402UC   compare>>

Additional Options

Pedestals & Stacking Kits


Pedestal with Drawer for 24" Bosch Washer

(WMZ20490) preview
+ $219.10

Our Recommendations

What's special about German engineering is special about Bosch.
Bosch takes pride in their ability to overcome technological obstacles. They face these daunting challenges so they can produce world-class, intuitive machines that use fewer resources. And that's why they'll never be afraid of the work it takes to engineer the world's best machines. Available at AJ Madison.

Bosch Laundry
Since Bosch introduced their front-loading models in Europe over 50 years ago, their washers and dryers have steadily been advancing and improving. Their machines are so advanced that it's the most energy efficient in America, using 76% less water and almost 72% less energy then conventional top-loading machines. It offers superior cleaning results and quieter operation. Bosch washers and dryers is the best you'll ever own do to the powerful combination of efficiency, performance, value and engineering.
Energy Info
This washer uses 135 kWh/yr and has an estimated yearly operating cost of $14.97.

The estimated yearly operating cost is based on doing 8 laundry loads a week and the 2011 national average electricity cost of $0.1109 cents per kWh. For more information, visit
Design Elements
Door Ring: Chrome
Control Buttons: Chrome
Dial: Chrome
Stackability: Yes
Display: Large LED
Tub Material: Stainless Steel
Maximum Spin Speed: 1,200 RPM
Internal Water Heater: Yes
Leak Protection Systems: Aqua Stop(Hose + Sensor)
Silence level - Washing: 59 dBA
Silence level - Spinning: 73 dBA
Cycles: 15
Options: 6
Tub Volume: 2.2 Cu. Ft.
Relative Load: 18 Bath Towels
ADA Compliant: Yes (When installed on a Bosch pedestal)
Perm. Press: Yes
Heavy Duty: Yes
Whitest Whites: Yes
Super Quick 15 Minute: Yes
Mixed: Yes
Woolens/Handwash: Yes
Maintenance: Yes
Cotton Normal: Yes
Sanitary: Yes
Quick Wash 30 Minute: Yes
Delicates: Yes
Jeans: Yes
Active Wear: Yes
Rinse: Yes
Technical Details
Watts: 2300
Current: 12 Amps
Volts: 208-240
Frequency(Hz): 60
Plug Type: NEMA 6-15 (3 Prong)
Power Cord Included: Yes
Power Cord Length: 61"
Drain Hose Length: 57"
Inlet Hose Length: 47"
Energy Consumption: 135 kWh/yr
Water Consumption: 3640 gal/yr
Energy Star: Yes
CEE Tier: 2
Dimensions and Weight
Height: 33 1/4"
Width: 23 1/2"
Depth: 24"
Minimum Stacking Height: 67 3/4"
Weight: 170 lbs
  • Large Capacity on Compact Footprint
  • 15 Wash Cycles plus 6 Selectable Options
  • Large LED Display with Delay Start
  • Unique Raindrop Stainless Steel Drum
  • AntiVibration Technology for Second Floors Installation
  • Special Cycles including 15 Minute Super Quick Wash, Sanitary, and Heavy Duty
  • Stackable Installation Option Helps Save Space
  • Plugs into Axxis Dryer. Uses 15 Amp 3-Wire 240/208 Volt Power Cord.
Info and Guides

Adobe Acrobat FileSpecifications Sheet

You will need Adobe Acrobat Reader to view and print pdf files

Adobe Reader
Product Reviews
Rated 4 out of 5 by 3 reviewers.
Rated 2 out of 5 Worst Purchase ever If Bosch wants to sell their products in the U.S.A., they need to provide the proper electrical connections. What a mess!!! The delivery people, who were supposed to set it up (I paid $150. extra), had no clue what to do with this machine. Obviously, it needed hot and cold water connection, since the machine doesn't have a heater - which I thought it did- they only connected the cold water and left me to deal with the electrical mess. Well, that was another $100. for an electrician. The machine can't "hold a candle" to the Miele I had in the past. Does not clean well. 3/14/14
Rated 5 out of 5 by Excellent Washer! Bought this washer 4 Months ago and are so pleased with it! We have a 1 year old daughter at home, so laundry is often quite dirty, but even on delicate programs, the clothes are exceptionally clean. We especially love the low water consumption and the high spin speed which shorten the drying time. 3/5/15
Rated 5 out of 5 by Wonderful! Laundry has never been my favorite thing but this washer makes it so much easier. Water conservation is important in my area and the low water consumption is an added bonus. Clean clothes and ecologically sound. Who could ask for more? 5/6/15
  • 2016-02-05 T05:41:27.837-06:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_3, tr_3
  • loc_en_US, sid_WAP24202UC, prod, sort_default
1-3 of 3
Items to Compare

Quick LookQuick Look

Quick Specs
Quick Specs


  • Type : Front Load
  • Color : White
  • Location of Controls : Front
  • Stackable : Yes


  • Width : 23 1/2 Inch
  • Depth : 25 Inch
  • Height : 33 1/4 Inch
  • Capacity : 2.2 Cu. Ft.


  • Control Type : Digital
  • Wash Cycles : 15
  • Steam Cycle : No
  • Bleach Dispenser : No
  • Fabric Softener Dispenser : Yes
  • Stainless Steel Drum : Yes
  • Leveling Legs : Yes
  • Maximum Spin Speed (RPM) : 1200
  • Reversible Door : No
  • Self Cleaning Lint Filter : No
  • Soak Setting : Yes
  • Water Heater : Yes
  • Usage : Residential

Technical Details

  • Energy Star Rated : Yes
  • CEE Rating : Tier II
  • ADA Compliant : Yes
  • Amps : 15
  • Voltage : 240/208 Volts
