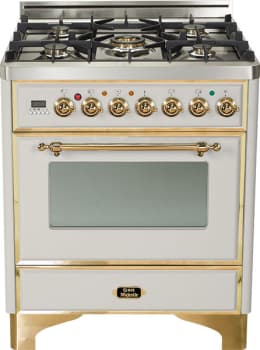

Ilve Majestic Techno Collection UM76DMPI

30" Freestanding Dual Fuel Range with 5 Semi-Sealed Burners, Proof Mode, Heat Insulated Door, Defrost Function, Warming Drawer and Brass Trim: Stainless Steel

Price Match Policy Price Match Policy
Printer Friendly Page Print
Share this item:

Extended Warranties

Includes in-home service, parts and labor. See Coverage Details

Extended Warranties

Extended Warranty
Protect Your Investment with an In-Home Protection Plan

Appliance Warranty Plan: This Plan is inclusive of the manufacturer's warranty and may be sold when purchasing qualifying appliances. This Plan provides in-home service. Coverage only applies to Products used non-commercially, unless a Commercial Service Agreement has also been purchased. Accessories and/or add-on options purchased separately and not essential to the basic function of the Product are not eligible for coverage.

Extended Warranty: New Leaf ServicePRO Service Plan provides additional coverage from the end of the manufacturer's warranty. This plan is an economical way to extend the terms of your product's manufacturer's parts and labor warranty. By purchasing a New Leaf ServicePRO Service Plan, you won't have to hassle with unexpected repair bills.

Service is Easy to Obtain: You can contact New Leaf online at www.newleafservicepro.com or call 1-855-TRY NEW LEAF (1.855.879.639.5323). The call center is open 24 hours a day, 365 days a year. You will be notified of the nearest service center. You will have access to more than 12,000 authorized service centers nationwide.

New Leaf Service Plan Benefits:

  • Fully Insured for Parts and Labor
  • Toll Free Number
  • Pre-screened & Authorized Service Providers
  • In-Home Repair
  • Repair or Replace Promise
  • No Deductibles or Hidden Charges - 100% Coverage of Parts and Labor
  • Plan is Transferable
  • Renewable
  • Multiple Repair Safeguard
  • Food Loss Protection
  • Power Surge Protection
  • Up to $250 Laundry Reimbursement

Exclusions: This Service Contract does not cover: unauthorized repairs or modifications; theft, abuse, misuse, neglect, vandalism, or environmental or weather conditions; any repair covered by a manufacturer's warranty; cosmetic or structural items; component(s) never covered by a manufacturer's warranty; loss of use during the period the product is at a repair facility or otherwise awaiting parts. In addition the plan does not cover damage to a non-operating part, damage to any part that is replaced periodicaly throughout the life cycle of the appliance. For a complete list of exclusions, please review the "Exclusions" section in the complete terms and conditions. This can be found at www.newleafservicepro.com, view terms and conditions.

Warranty Options
1 Year Extension Warranty for a Single Appliance Under $15,000 remove plan $139.00
3 Year Date Of Delivery Warranty for a Single Appliance Under $15,000 remove plan $199.00
5 Year Date Of Delivery Warranty for a Single Appliance Under $15,000 remove plan $399.00
Financing Available! Learn more now.
As low as
$441.50/month 1
Financing Available! Learn more now. Learn More >
Color Options
Selected Stainless Steel

Additional Options

Add

Wrap Around Toe Kick for UM76

(AMZ89)
+ $309.00
Description
Ilve Majestic Collection
Ilve is a company that believes in safety and quality. This belief has been demonstrated in all Ilve's products, made and admired for over 35 years. The wealth of experience gained during this period together with a specific know-how in gas and electric household cooking appliances has resulted in an advanced and safe technology mixed with a superior design and unique styling. Ilve products range follows the latest design and compliments the latest trends in furnishing, thanks to which they are simple to be used and which will enhance any type of interior decoration. Available at AJ Madison.

All products are manufactured according to International Standards and their quality is continuously controlled by world major Certification Institutes. Ilve products are certified to CE and CSA standards allowing them free entry to all Member Countries within the European Union and other major world markets like USA. Presently Ilve distributes its products in more than 40 countries worldwide. Ilve's mission is to offer the widest choice of cooking appliances to meet any special kitchen requirements through the leadership in design and technical innovation. Ilve leads in quality, safety, design and equipment range and has confidence to maintain this lead in the future. Renowned for innovation and superior design, ILVE dual fuel ranges come in an array of colors and configurations limited only by your imagination. A host of options gives you the opportunity to custom design your own range.
Specifications
Performance
Total Oven Capacity: 3.0 cu. ft.
Dual Triple Ring Burner: 15,500 BTU (1)
Big Burner: 10,500 BTU (2)
Small Burner: 7,000 BTU (2)
Fuel Type: Dual Fuel
Electrical Requirements: 240/208V; 60Hz; 30A
Power Rating: 3,700W
Features
Burners: 5 Semi Sealed
Oven Temperature Range: 75° - 500°
Preheat Indicator Light: Yes
Racks: 2
Proofing Mode: Yes
Rotisserie: Yes
Liquid Propane Kit: Included
Electronic Igntion: Yes
Wok Ring: Yes
Convection Bake: Yes
Convection Broil: Yes
Grill Baking or Broiler: Yes
Flame Failure Safety Device: Yes
Multi-Function: 8 Function
Appearance
Style: Freestanding
Designer Handle: Yes
Trim Color: Brass
Viewing Window: Yes
Warming Drawer: 125° - 200°
Continuous Grates: Yes
Backguard: Yes; 2 3/8"
Clock and Kitchen Timer: Digital
Scroll Legs: Optional
Tubular Legs: Optional
Dimensions and Weight
Product Width: 29 15/16"
Product Depth: 27 3/4"
Product Height: 35 13/16"
Height of Backguard: 2 3/8"
Product Weight: 330 Lbs.
Features
  • Defrost Function and Quick Start
  • Defrosting of frozen food is accelerated by means of fan driven air circulation. The advantage of defrosting at room temperature is that it does not alter the taste and appearance of the food
  • Convection Oven
  • This provides a more even heat than a conventional oven and food is "sealed" very quickly. Preheating is generally unnecessary. As there is no top or bottom heat the whole area of the oven can be utilized.
  • Convection Bake
  • A fast intensive form of cooking, suitable for a variety of dishes. It replaces the spit and can be used for baked fish, braised vegetables, kebabs, roast chicken, duck etc.
  • Convection Broil
  • An energy-saving method for deep cooking. Suitable for chops, sausages, kebabs etc.
  • Grill-baking
  • Suitable for roast meats in general, example fillet steak, grilled fish and vegetables. And also for cooking "au gratin", example cauliflower cheese.
  • Upper Element
  • Especially suitable for browning and to add the finishing touches of color to different dishes. Ilve suggests this setting when browning lasagna, melting cheese toppings etc.
  • Lower Element
  • As the heat comes from the lower element, this setting is particularly suitable for pastry and cakes e.g. flans, pizzas, biscuits, fruit cakes etc.
  • Bake
  • This operates like a conventional electric oven and can be used accordingly. Suitable for pork, chops, sausage, game, roast veal, meringues and biscuits, baked fruit, etc.
  • Heat-Insulated Door
  • 3 special glasses keep the heat inside the oven allowing the temperature on the outer glass to remain low. Internal glasses and door can be easily removed for cleaning.
  • Insulation
  • It is obtained through the use of high-density glass-wool panels. All this has been studied to guarantee uniformity of temperature and energy saving.
  • Class A for performance and consumption (according to European standards)
  • The design solutions that characterize the ovens are now extended to the whole range.
  • Electronic Ignition included in the knobs
  • Just press a knob and the burner will light up.
  • Semi Sealed Brass Burners
  • Semi Sealed Burners allow for precise gas adjustment during installation while keeping spilled foods where they belong... on the cook top for easy cleaning.
  • Multi-Gas Burners
  • With stabilized flame, they eliminated eventual flame extinctions due to draught or liquid overflow. Enameled grilles. Includes 1 triple ring burner, 2 big burners and 2 small burners. Enameled removable burner caps for easy cleaning. Sturdy cast iron gra
  • Flame Failure Safety Device
  • All gas burners are equipped with a Flame Failure Safety Device. If the flame is extinguished, the gas supply will turn off automatically.
  • Warming Drawer
  • Ideal for warming plates when the oven is in use.
  • Detail of the Rounded Top
  • Besides giving a pleasant new appearance, it compensates the difference in depth between the kitchen units and the cooker, thus avoiding an impact between the two depths.
  • The following accessories must be installed at the factory. They cannot be ordered later.
  • Upper Handrail.
  • Available at AJ Madison.
  • www.ajmadison.com
Info and Guides

Adobe Acrobat FileSpecification Sheet

Adobe Acrobat FileIlve Catalog

Adobe Acrobat FileUser Manual

You will need Adobe Acrobat Reader to view and print pdf files

Adobe Reader
Product Reviews
Items to Compare

Quick LookQuick Look

Quick Specs
Quick Specs

Appearance

  • Fuel Type : Dual Fuel
  • Fuel Subtype : Natural Gas
  • Style : Freestanding
  • Color : Stainless Steel
  • Cooktop : Open Burner
  • Continuous Grates : Yes
  • Stainless Steel Handle : Yes
  • Viewing Window : Yes
  • Drawer : Warming
  • Clock : Yes

Dimensions

  • Width : 29 15/16"
  • Depth : 27 3/4"
  • Height : 35 13/16"
  • Interior Width : 21 3/16"
  • Interior Depth : 13 3/4"
  • Interior Height : 17 11/16"

Burner Output

  • Set 1 QTY : 1
  • Set 1 Output : 15500
  • Set 2 QTY : 2
  • Set 2 Output : 10500
  • Set 3 QTY : 2
  • Set 3 Output : 7000

Cooktop Features

  • Burners / Elements : 5
  • Cooktop Control Type : Knobs
  • Downdraft Ventilation : No
  • Modules Required : No
  • Hot Surface Indicator Light : No
  • Induction : No
  • Grill : No
  • Griddle : No

Oven Features

  • Primary Oven Capacity : 3 cu. ft.
  • Oven Control Type : Knobs
  • Digital Temperature Display : No
  • Timer : Yes
  • Convection : Yes
  • Delay Bake : Yes
  • Proofing : Yes
  • Sabbath Mode : No
  • Broiler Element Location : Top
  • Temperature Probe : No
  • Interior Oven Light : Yes
  • Racks : 2
  • Removable Door : Yes

Technical Details

  • Star-K Certified : No
  • ADA Compliant : No
  • Ignition Type : Electronic
  • Oven Wattage : 3700
  • LP Conversion : Yes
  • Amps : 30
  • Voltage : 240/208 Volts
