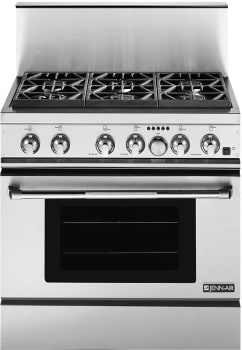

JennAir PRD3630NP - Stainless Steel
JennAir PRD3630NP - Stainless Steel

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
JennAir PRD3630NP
Authorized
Dealer

JennAir
PRD3630NP
36 Inch Pro-Style Freestanding Dual-Fuel Range with Convection and Self-Cleaning Feature: Stainless Steel

Top Quality Store on Google
quick specs
Sabbath Mode: No
Cooktop: Sealed Burner
Drawer: None
Width: 35 7/8 Inch
Depth: 27 3/8 Inch
Height: 35 3/4 Inch
Number of Burners: 6
Primary Oven Capacity: 4.7 Cu. Ft.
Continuous Grates: Yes
Convection: Yes
Self-Cleaning: Yes
Temperature Probe: No
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: JennAir
Model: PRD3630NP
Appearance
Fuel Type: Dual Fuel
Style: Freestanding
Color: Stainless Steel
Stainless Steel Handle: Yes
Cooktop: Sealed Burner
Cooktop Control Type: Knobs
Oven Control Type: Knobs
Viewing Window: Yes
Drawer: None
Clock: No
Dimensions
Width: 35 7/8 Inch
Depth: 27 3/8 Inch
Height: 35 3/4 Inch
Interior Width: 27 13/16 Inch
Interior Depth: 20 1/2 Inch
Interior Height: 14 Inch
Shabbos Compliance
Sabbath Mode: No
Capacity
Number of Burners: 6
Primary Oven Capacity: 4.7 Cu. Ft.
Burner
Burner 1 Output: 15000/570
Burner 2 Output: 15000
Gas Cooktop Features
Continuous Grates: Yes
Oven Features
Digital Temperature Display: No
Timer: No
Delay Bake: No
Convection: Yes
Proof Mode: No
Self-Cleaning: Yes
Racks: 3
Temperature Probe: No
Broiler Element Location: Top
Interior Oven Light: Yes
Removable Door: No
Technical Details
Oven Wattage: 5,000
LP Conversion: Yes
Amps: 30
Voltage: 240/208 Volts
GTIN
UPC: 719881129990
Are you a Trade Pro? Join Now

Description

Jenn-Air Pro-Style gas ranges provide the professional look and performance gourmet cooks are looking for, with a long list of outstanding features. A 15,000 BTU burner with Dual Flame burners provides quick heat-up for rapid boiling and reduces to a 520 BTU simmer setting for heating delicate sauces. The dual ring design provides greater heating precision for a variety of pan sizes. Standard single ring burners reach 16,000 BTUs for even more powerful heating capabilities. Continuous cast iron grates provide durability and make it easy to move cookware from one burner to another.

Specifications

Dimensions & Weight
Overall Height:
35 3/4" - 37"
Overall Width:
35 7/8"
Overall Depth (excl. Handle):
27 3/8"
Overall Depth (incl. Handle):
30 1/4"
Oven Interior Height:
14"
Oven Interior Width:
27 13/16"
Oven Interior Depth:
20 1/2"
Oven Capacity:
4.7 cu. ft.
Approximate Shipping Weight:
415 lbs.
Power/Ratings
Burner BTU (Natural Gas High/Low) - Right Front:
15,000/4,000
Burner BTU (Natural Gas High/Low) - Right Front (Dual Flame):
1,200/570
Burner BTU (Natural Gas High/Low) - Left Front:
15,000/4,000
Burner BTU (Natural Gas High/Low) - Left Front (Dual Flame):
1,200/570
Burner BTU (Natural Gas High/Low) - Right Rear:
15,000/1,600
Burner BTU (Natural Gas High/Low) - Left Rear:
15,000/1,600
Burner BTU (Natural Gas High/Low) - Center Front:
15,000/1,600
Burner BTU (Natural Gas High/Low) - Center Rear:
15,000/1,600
Oven/Broil Element Wattage:
5,000/4,000
Total Connected Load - kW:
6.4
Warranty
Jenn-Air Platinum Warranty:
Yes
Cooking Surface Features
Standard Sealed Gas Burners:
4
Dual Flame Sealed Gas Simmer Burner(s):
2
Electronic Ignition:
Yes w/ Flame-Sensing Reignition
Porcelain-On-Cast Iron Burner Grates:
Yes
Infinite Surface Control Settings:
Yes
Porcelain-On-Cast Iron Wok Ring Included:
Yes
Oven Features
Single Speed Convection Oven:
Convect Bake/Convect Roast
Standard Bake/Broil Oven:
Yes
Self-Cleaning Electric:
Yes w/ Auto Lock
8-Pass Broil Element:
Yes
Heavy-Gauge Oven Racks:
3
Porcelain Broil Pan:
Yes w/ Rack
Extra-Large Panaview Oven Window:
Yes
Two Oven Lights:
Yes
Control Panel Oven Light Switch:
Yes
Exterior Features
Stainless Steel Towel Bar Handle:
Yes w/ Diamond Etched Grip
Convertible to LP Gas:
Yes
Accepts Optional Backsplash:
Yes
Accepts Optional Hood:
Yes
Freestanding Installation:
Yes

Features

Cooktop
  • Gas cooking surface provides excellent heating control cooks prefer.
  • Six sealed gas burners provide the versatility serious cooks demand.
  • Two Dual Flame? burners deliver 15,000 BTUs for pan-searing, yet reduce to 520 BTUs for heating delicate sauces.
  • Flame-Sensing? re-ignition automatically re-ignites flame if accidentally blown out.
  • Continuous porcelain-on-cast iron burner grates make it easy to move cookware from one burner to another.
  • Infinite surface control settings provide pinpoint temperature control for gourmet cooks.
  • Porcelain-on-cast iron wok ring included.
Oven
  • Electric oven provides balanced heat distribution for evenly browned baked goods.
  • 4.7 cu. ft. convection oven offers Convect Bake and Convect Broil options for superb results.
  • Conventional bake, roast and broil capabilities provide maximum cooking flexibility.
  • Self-clean oven with automatic lock makes cleaning the oven safe and hassle-free.
  • Eight-pass broil element provides more even heat distribution for better results.
  • Large window and two oven lights make it easy to check on items inside, without having to open the door.
Exterior
  • Professional stainless steel design provides a versatile restaurant-style appearance.
  • Oversized knobs and diamond-etched towel bar handles provide a bold look, and improved grip.
  • Backsplash required, 12" height or 22" height with warming/storage shelf available (not included).
  • 1.5" backsplash available in island or non-combustible wall installations (not included).
  • Accepts optional Pro-Style? hood to enhance the professional look.
  • Convertible to LP gas.
