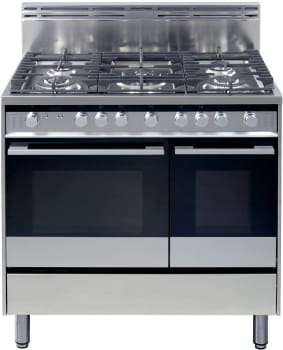

Fisher & Paykel OR36LDBGX1 - Featured View
Fisher & Paykel OR36LDBGX1 - Featured View
Fisher & Paykel OR36LDBGX1 - Oven to Table Baking Tray

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Fisher & Paykel OR36LDBGX1
Authorized
Dealer

Fisher & Paykel
OR36LDBGX1
36 Inch Pro-Style Gas Range with 5 Sealed Burners, 2.5 cu. ft. Primary Oven Capacity, Convection Cooking System, Manual Clean and 1.5 cu. ft. Secondary Oven

quick specs
Sabbath Mode: No
Cooktop: Sealed Burner
Drawer: None
Width: 35 7/8 Inch
Depth: 23 31/32 Inch
Height: 35 7/16 Inch
Number of Burners: 5
Primary Oven Capacity: 2.5 Cu. Ft.
Continuous Grates: Yes
Convection: Yes
Self-Cleaning: No
Temperature Probe: No
Warranty Terms: 2 years
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: Fisher & Paykel
Model: OR36LDBGX1
MPN: 88617
Warranty Terms: 2 years
?
Appearance
Fuel Type: Gas
Style: Freestanding
Color: Stainless Steel
Stainless Steel Handle: Yes
Cooktop: Sealed Burner
Cooktop Control Type: Knobs
Oven Control Type: Knobs
Viewing Window: Yes
Drawer: None
Clock: Yes
Dimensions
Width: 35 7/8 Inch
Depth: 23 31/32 Inch
Height: 35 7/16 Inch
Shabbos Compliance
Sabbath Mode: No
Capacity
Number of Burners: 5
Primary Oven Capacity: 2.5 Cu. Ft.
Secondary Oven Capacity: 1.5 Cu. Ft.
Burner
Burner 1 Output: 16000
Burner 2 Output: 12000
Burner 3 Output: 6000
Gas Cooktop Features
Continuous Grates: Yes
Oven Features
Digital Temperature Display: No
Timer: Yes
Delay Bake: No
Convection: Yes
Proof Mode: No
Self-Cleaning: No
Racks: 2
Temperature Probe: No
Broiler Element Location: Top
Interior Oven Light: Yes
Removable Door: Yes
Technical Details
Oven BTUs: 13,000
LP Conversion: Yes
Amps: 15
Voltage: 120 Volts
GTIN
UPC: 822843884834
Are you a Trade Pro? Join Now

Description

Fisher & Paykel Appliances designs, manufactures and markets a range of innovative household appliances developed with a commitment to technology, design, user friendliness and environmental awareness. On June 15th, 2006 Fisher & Paykel Appliances Holdings Limited announced that it has agreed to acquire the European cookware business Elba S.p.A from De'Longhi S.p.A for a purchase price of EUR78 million. The acquisition provides a more comprehensive range of kitchen products for distribution through the United States. The existing models have been completely restyled cosmetically to fit with the Fisher & Paykel brand and complement the current DCS range of products giving the customer a choice of styles.

This freestanding range combines the convenience of two gas ovens with the control and precision of an integrated five burner gas cooktop. A fresh, clean look reflects the latest design philosophies from Europe, featuring refined control knobs and easy to follow icons on a simple designer control panel.

This model includes a range of gas burner sizes and powers for greater convenience and flexibility. Large, small and medium burners will suit any cooking style, from a fast stir-fry to a slow simmer.

Specifications

Capacity
Usable Oven Capacity (main oven):
2.5 cu. ft
Usable Oven Capacity (second oven):
1.5 cu. ft
Product Dimensions
Overall Height of Product:
35 7/16" - 37 13/32"
Overall Width of Product:
35 7/8"
Overall Depth of Product (without handle):
23 31/32"
Accessories
Oven Shelves:
2 (second oven)
Oven to Table Glass Baking Tray:
Yes
Step Down Oven Shelves:
2
Broiling Pans:
2
Broiling Racks:
2
Cleaning
Oven Light:
Rear
Surface:
Easy clean, Hard-Wearing Grey Enamel
Removable Door:
Yes
Removable Inner Door Glass:
Yes
Controls
Clock:
3 Button Electronic Clock
Cooking Modes
Bake:
Yes
Defrost:
Yes
Broil:
Yes
Convection Cooking with Ventilation:
Yes
Cooktop/Hob Features
Wok Stand:
Yes
Gas Burners:
5
Automatic Ignition:
Yes
LPG and Natural Gas Compatible:
Yes
Burner Types:
3
Performance Features
Oven Burner:
Yes
Broil Burner:
Yes
Oven Thermostat:
Yes
Fan Motor:
Yes
Electronic Ignition:
Yes
Functions:
4
Safety
Double Glazed Doors:
Yes
Door and Oven Cavity Cooling System:
Yes
Flame Failure Protection:
Yes (cooktop and oven)

Features

Accessories
  • 2 Oven Shelves (second oven)
  • Oven to Table Glass Baking Tray
  • The multipurpose glass tray is made from toughened glass to withstand high temperatures.
  • It is suitable for roasting and grilling, and can be used as a serving dish.
  • The rim of the tray makes it easy to handle.
  • 2 Step Down Oven Shelves
  • 2 Broiling Pans
  • 2 Broiling Racks
Cleaning
  • Rear Oven Light
  • Easy Clean, Hard-Wearing Grey Enamel
  • Removable Door with Soft Hinges
  • Removable Inner Door Glass
Controls
  • 3 Button Electronic Clock
  • The three button electronic clock groups together the functions of the 12 hour clock with illuminated display and the electronic alarm.
Cooking Modes
  • Bake
  • Defrost
  • Broil
  • Convection Cooking with Ventilation
Cooktop/Hob Features
  • Wok Stand
  • 5 Gas Burners
  • Automatic Ignition
  • LPG and Natural Gas Compatible
  • Dual Burner
  • Triple Ring Burner
  • Attractive and Durable Cast Iron Grates
  • Exceptionally durable cast iron grates enhance the contemporary design and quality components.
Performance Features
  • Oven Burner
  • Broil Burner
  • Oven Thermostat
  • Fan Motor
  • Electronic Ignition
  • 4 Functions
Safety
  • Double Glazed Doors
  • Door and Oven Cavity Cooling System
  • Flame Failure Protection (cooktop and oven)
