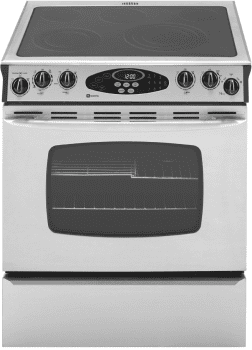

Maytag MES5775BAS - View 1
Maytag MES5775BAS - View 1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Maytag MES5775BAS
Authorized
Dealer

Maytag
MES5775BAS
30 Inch Slide-In Electric Range with 5 Radiant Elements Including Triple-Choice Element, 4.5 cu. ft. Self-Clean Oven, Hidden Bake Element and Storage Drawer: Stainless Steel

Top Quality Store on Google
quick specs
Sabbath Mode: Yes
Cooktop: Smoothtop
Drawer: Storage
Width: 30 Inch
Depth: 28 5/16 Inch
Height: 36 Inch
Number of Burners: 5
Primary Oven Capacity: 4.5 Cu. Ft.
Hot Surface Indicator Light: Yes
Induction: No
Convection: No
Self-Cleaning: Yes
Temperature Probe: No
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: Maytag
Model: MES5775BAS
Appearance
Fuel Type: Electric
Style: Slide-In
Color: Stainless Steel
Stainless Steel Handle: Yes
Cooktop: Smoothtop
Cooktop Control Type: Digital
Oven Control Type: Digital
Viewing Window: Yes
Drawer: Storage
Clock: Yes
Dimensions
Width: 30 Inch
Depth: 28 5/16 Inch
Height: 36 Inch
Shabbos Compliance
Sabbath Mode: Yes
Capacity
Number of Burners: 5
Primary Oven Capacity: 4.5 Cu. Ft.
Burner
Burner 1 Output: 2700
Burner 2 Output: 2400
Burner 3 Output: 1200
Burner 4 Output: 100
Electric Cooktop Features
Hot Surface Indicator Light: Yes
Induction: No
Oven Features
Digital Temperature Display: Yes
Timer: Yes
Delay Bake: Yes
Convection: No
Proof Mode: No
Self-Cleaning: Yes
Racks: 2
Temperature Probe: No
Broiler Element Location: Top
Broiler Pan Included: No
Interior Oven Light: Yes
Removable Door: No
Technical Details
ADA Compliant: Yes
Oven Wattage: 3,000
Amps: 50
Voltage: 240/208 Volts
GTIN
UPC: 719881163307
Are you a Trade Pro? Join Now

Description

The MES5775BAS features a total of five radiant elements. Including one dual-choice element and the unique triple-choice element. Which makes it ideal for a chef that likes to cook a variety of dishs at once. In addition The favorite setting option allows the oven to remember just how the chef likes their most frequenly made dishes. All of this is operated by the new Precision Touch 800 Electronic Oven Controls.

Specifications

Specifications
Height:
36 7/16"
Width:
30 3/4"
Depth With Handle:
28 5/16"
Height To Cooktop:
36"
Approximate Shipping Weight:
195lbs
Oven Features
Capacity Cu. Ft.:
4.3
Self-Cleaning Oven:
Yes
Six-Pass Recessed Broil Element:
Yes
Open Door Broiling:
Yes
Hidden Baking Element:
Yes
Control Lockout and Sabbath Mode Options:
Yes
Keep Warm Feature:
Yes
Oven light:
Yes
Super-Size Oven Window:
Yes
Oven Rack Positions:
5
Create-A-Space Half-Rack (UXA4905ADX):
Optional
Cooktop Features
6" 1,200-Watt Radiant Element:
RR
6" 1,200-Watt Flex-Choice Melting Element:
LR
9"/6" 2,400-/1,000-Watt Dual Choice Radiant Element:
LF
12"/9"/6" Triple Choice Radiant Element:
RF
6" Precision Warming Center+:
CF
Hot-Surface Indicator Light:
Yes
Upswept Cooktop:
Yes
Control Features
Precision Touch Electronic Oven Controls:
500
Variable Broil:
hi/Lo
Delay Setting (Bake and Clean):
Yes
Electronic With Timer:
Yes
Cook & Hold Setting:
Yes
Pull-Off Control Knobs:
Yes
Exterior Features
Monochromatic Glass-Front Oven Door:
Yes
Quiet Door Hinges:
Yes
Esay-Roll Storage Drawer:
Yes
Towel-Bar Door Handle:
Yes

Features

Standard Features
  • Precision Touch Electronic Oven Controls
  • Cook & Hold Setting
  • Keep Warm Setting
  • Self-Cleaning Oven
  • DuraClean Control Panel
  • ELectronic Clock with Timer
  • Delay-Start Oven Control (Bake and Clean)
  • Control Lockout
  • Sabbath Mode
  • Heavy-Duty Oven Racks
  • Monochromatic Glass Front Oven Door
  • Super-Size Oven Window
  • Oven Light
  • Easy-Roll Storage Drawer
Special Features
  • Super Capacity (4.5 Cu. Ft.)
  • 6" Flex-choice Melting Element
  • 6" Radiant Element
  • 9"/6" Dual-Choice Element
  • Unique 12"/9"/6" Triple choice element
  • 6" Precision Warming Center
  • Precision Touch 800 Electronic Oven Controls
  • Smoothtop Glass-Ceramic Cooking Surface
  • Favorite Setting
  • Six-Pass Recessed Broil Element
  • Hidden Bake Element
  • Automatic Oven light
