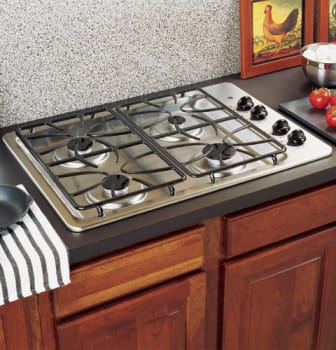

GE JGP330SEKSS - Stainless Steel
GE JGP330SEKSS - Stainless Steel
GE JGP330SEKSS - Sealed Burner
GE JGP330SEKSS - High Output Burner
+3

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
GE JGP330SEKSS
Authorized
Dealer

GE
JGP330SEKSS
30 Inch Gas Cooktop with 4 Sealed Burners, 11,000 BTU High Output Burner, Precise Simmer Burner, Deep-Recessed Cooktop and ADA Compliant: Stainless Steel

Top Quality Store on Google
quick specs
Sabbath Mode: No
Number of Burners: 4
Style: Sealed Burner
Type: Drop-In
Control Type: Knobs
Downdraft Venting: No
Actual Width: 30 Inch
Continuous Grates: Yes
Grill: No
Griddle: No
Warranty Terms: 1 year
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: GE
Model: JGP330SEKSS
Warranty Terms: 1 year
?
Appearance
Fuel Type: Gas
Number of Burners: 4
Style: Sealed Burner
Type: Drop-In
Control Type: Knobs
Color: Stainless Steel
Surface Color: Stainless Steel
Downdraft Venting: No
Dimensions
Actual Width: 30 Inch
Actual Depth: 21 Inch
Actual Height: 3 3/16 Inch
Cutout Width: 28 1/2 Inch
Cutout Depth: 19 5/8 Inch
Shabbos Compliance
Sabbath Mode: No
Burner
Burner 1 Output: 11000
Burner 2 Output: 9500
Burner 3 Output: 5000
Gas Cooktop Features
Continuous Grates: Yes
Grill: No
Griddle: No
Technical Details
ADA Compliant: Yes
LP Conversion: Yes
Amps: 10
Voltage: 120 Volts
Are you a Trade Pro? Join Now

Description

GE Consumer and Industrial spans the globe as an industry leader in major appliance, lighting and integrated industrial equipment systems and services. They provide solutions for commercial, industrial and residential use in more than 100 countries which uses innovative technologies and "ecomagination." It's a GE initiative to aggressively bring to market new technologies that help customers and consumers meet pressing environmental challenges to deliver comfort, convenience and electrical protection and control. GE brings imagination to work.

The GE JGP330 has a deep-recessed cooktop surface that is designed to help contain spills and making cleaning easy. The sealed cooktop burners eliminates the space between the burners and the cooktop, to help contain spills and boil-over liquids, ensuring easy cleanup. The precise simmer burner offers low settings for melting chocolate and preparing delicate sauces. The Dishwasher-safe medium cast grates are constructed from a durable cast iron material for worry-free, effortless cleaning and maintenance.

Specifications

Dimensions
Overall Width:
30"
Overall Depth:
21"
Overall Height:
3 3/16"
Cutout Width:
28 1/2"
Cutout Depth:
19 5/8"
Minimum Spacing to Back Wall:
2 1/4"
Minimum Spacing to Left Wall:
3 3/4"
Minimum Spacing to Right Wall:
6"
Minimum Front Countertop Clearance:
2 1/2"
Features
ADA Compliant:
No
Cooktop Burners:
4 Sealed
Dual-Flame Stacked Burner 000's BTU:
N/A
PowerBoil Burner 000's BTU:
N/A
All-Purpose Burners 000's BTU:
1 @ 11.0/150 Degree Simmer, 2 @ 9.5/150 Degree Simmer
Precise Simmer Burner 000's BTU:
1 @ 5.0/140 Degree Simmer
Electronic Pilotless Ignition:
Yes
Cooktop Surface:
Deep Stainless
Cooktop Grates:
Matte Black Medium-Cast
Continuous Grates:
Yes
Dishwasher-Safe Grates and Knobs:
Yes
Control Panel:
Stainless
Controls:
Right Side
Control Lock Capability:
No
Power/Ratings
Gas Cooktop Electrical Ratings:
120V, 60Hz, 5A
Burners 000's BTU (Natural Gas/LP Gas):
1 @ 11.0/10.0, 2 @ 9.5/9.1, 1 @ 5.0/5.0

Features

Key Features
  • Deep Recessed Cooktop
  • Designed with a recessed surface to help contain spills and make cleaning easy.
  • Sealed Cooktop Burners
  • Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup.
  • Precise Simmer Burner
  • Delivers a low setting of 140 degrees, ideal for delicate foods and sauces.
  • Continuous Grates
  • Provide a flat, sturdy surface allowing easy movement of pans between burners.
  • Dishwasher-Safe Grates and Knobs
  • Feature durable construction for worry-free, effortless cleaning and maintenance.
  • Medium Cast Grates
  • All-Purpose 11,000 BTU Burner
  • Provides a powerful burner output for efficient heat-up and boiling.
