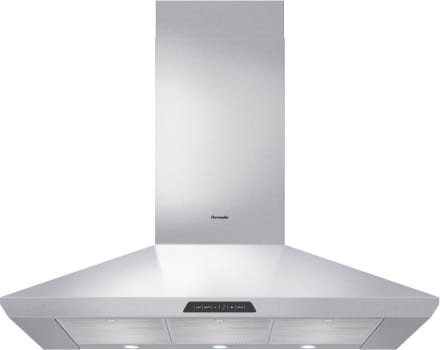

Thermador Masterpiece Series HMCN42FS

Wall Mount Chimney Range Hood with Multiple Blower Options, Halogen Lights, 4-Speed Touch Controls and 7 Segment Electronic Display: 42-Inch

Your Price: $1,699.00

Qty:

Price Match Policy Price Match Policy
Printer Friendly Page Print
Share this item:

Extended Warranties

Includes in-home service, parts and labor. See Coverage Details

Extended Warranties

Extended Warranty
Protect Your Investment with an In-Home Protection Plan

Appliance Warranty Plan: This Plan is inclusive of the manufacturer's warranty and may be sold when purchasing qualifying appliances. This Plan provides in-home service. Coverage only applies to Products used non-commercially, unless a Commercial Service Agreement has also been purchased. Accessories and/or add-on options purchased separately and not essential to the basic function of the Product are not eligible for coverage.

Extended Warranty: New Leaf ServicePRO Service Plan provides additional coverage from the end of the manufacturer's warranty. This plan is an economical way to extend the terms of your product's manufacturer's parts and labor warranty. By purchasing a New Leaf ServicePRO Service Plan, you won't have to hassle with unexpected repair bills.

Service is Easy to Obtain: You can contact New Leaf online at www.newleafservicepro.com or call 1-855-TRY NEW LEAF (1.855.879.639.5323). The call center is open 24 hours a day, 365 days a year. You will be notified of the nearest service center. You will have access to more than 12,000 authorized service centers nationwide.

New Leaf Service Plan Benefits:

  • Fully Insured for Parts and Labor
  • Toll Free Number
  • Pre-screened & Authorized Service Providers
  • In-Home Repair
  • Repair or Replace Promise
  • No Deductibles or Hidden Charges - 100% Coverage of Parts and Labor
  • Plan is Transferable
  • Renewable
  • Multiple Repair Safeguard
  • Food Loss Protection
  • Power Surge Protection
  • Up to $250 Laundry Reimbursement

Exclusions: This Service Contract does not cover: unauthorized repairs or modifications; theft, abuse, misuse, neglect, vandalism, or environmental or weather conditions; any repair covered by a manufacturer's warranty; cosmetic or structural items; component(s) never covered by a manufacturer's warranty; loss of use during the period the product is at a repair facility or otherwise awaiting parts. In addition the plan does not cover damage to a non-operating part, damage to any part that is replaced periodicaly throughout the life cycle of the appliance. For a complete list of exclusions, please review the "Exclusions" section in the complete terms and conditions. This can be found at www.newleafservicepro.com, view terms and conditions.

Warranty Options
1 Year Extension Warranty for a Single Appliance Under $3,000 remove plan $69.00
3 Year Date Of Delivery Warranty for a Single Appliance Under $3,000 remove plan $129.00
5 Year Date Of Delivery Warranty for a Single Appliance Under $3,000 remove plan $259.00
Financing Available! Learn more now.
As low as
$141.58/month 1
Financing Available! Learn more now. Learn More >
Sizes
Select 36-Inch $1,599.00
Selected 42-Inch $1,699.00

Companion Products, Options, and Accessories

Thermador HMCN42FS

This item

Add selected items to cart

Total price: 0

Additional Options

1. Remote Blower Options (Mounted to roof or external wall)

Add

1,000 CFM Remote Blower

(VTR1030D) (required) preview
+ $729.00
Add

1,300 CFM Remote Blower

(VTR1330E) (required) preview
+ $769.00
Add

600 CFM Remote Blower

(VTR630D) (required) preview
+ $579.00

2. Inline Blower Options (Mounted between kitchen and external wall)

Add

1,000 CFM In-Line Blower

(VTI1010D) (required) preview
+ $729.00
Add

600 CFM In-Line Blower

(VTI610D) (required) preview
+ $579.00

3. Integrated Blower Options (Mounted on Hood)

Add

1,000 CFM Integrated Blower

(VTN1080F) (required) preview
+ $719.00

4. Blower Accessories

Add

Roof Plate For Roof Mount Applications Of VTR1030D and VTR1330E

(RFPLT1000) (required) preview
+ $139.00
Add

Roof Plate For Roof Mount Applications Of VTR630D

(RFPLT600) (required) preview
+ $119.00

5. Accessories

Add

Chimney Wall Hood Extension for HMCN/HMCB Series

(CHIMXHMC) preview
+ $229.00
Description
A Thermador kitchen is more luxurious, more efficient and more beautiful than any other kitchen. Because for seven decades, Thermador has been at the forefront of fusing the art and science of design and ingenuity. From introducing the first built-in oven almost 50 years ago to revolutionizing gas cooktops with the patented Star Burner; and from designing the first retractable downdraft ventilation system to advancing speed cooking technology; Thermador has helped transform the American kitchen.

As you explore new culinary possibilities in your state-of-the-art Thermador kitchen, powerful Thermador ventilation systems dutifully work to keep the air in your kitchen and home fresh and clean. These powerful systems tackle unwanted smoke, grease, heat and odors quietly and efficiently with ventilation power that ranges from 400 to 1400 CFM and come in a variety of styles and configurations that will complement any kitchen design.
Specifications
Dimensions
Canopy Width: 41 1/2"
Canopy Depth: 21 1/2"
Canopy Height: 9 1/2"
Overall Height included Chimney: 31" - 35"
Chimney Width: 13 1/2"
Chimney Depth: 11"
Chimney Height: 21 1/2"
Hood Specifications
Available Hood Widths: 36", 42"
Blower: Sold Separately - See below for more info.
Duct Size at Discharge: 8" Round
Ducting Direction: Vertical
Ceiling Heights: 8 ft. to 9 ft.
Dishwasher Safe Filters: 3 Mesh with Stainless Frame
Halogen Lighting: 3 Bulbs
Transition with Backdraft Damper: Required (Purchase separately at most hardware stores)
Non-Ducted Capability: No
Blower Specifications
CFM: 600, 1000, 1300
Type - Remote: 600/1000/1300 CFM
Type - Inline: 600/1000 CFM
Type - Integral: 1000 CFM
Integral: VTN1080F
Remote: VTR630D; VTR1030D; VTR1330E
Inline: VTI610D; VTI1010D
Total Amps @ 120 Volts, 60 Hz - VTN1080F: 5.0
Total Amps @ 120 Volts, 60 Hz - VTR630D: 6.7
Total Amps @ 120 Volts, 60 Hz - VTR1030D: 7.8
Total Amps @ 120 Volts, 60 Hz - VTR1330E: 9.2
Total Amps @ 120 Volts, 60 Hz - VTI610D: 5.8
Total Amps @ 120 Volts, 60 Hz - VTI1010D: 7.6
Roof Plate Required - RFPLT600: For use with VTR630D
Roof Plate Required - RFPLT1000: For use with VTR1030D & VTR1330E
Electrical Specifications
Electrical Supply: 120V AC, 60 Hz
Required Circuit Breaker: 15 or 20 Amp
Warranty
Limited Parts and Labor: 1 Year
Accessories
Chimney Extension: CHIMXHMC
Remote Blower Accessories
Roof Plate: RFPLT600 (for use with VTR630D)
Roof Plate: RFPLT1000 (for use with VTR130D & VTR1330E)
Features
  • Performance
  • 3 fan speeds plus 10 minute high-power operation mode
  • Filters are highly efficient at capturing grease
  • Powerfully quiet ventilation systems
  • Design
  • Classic chiseled design matches Thermador's Masterpiece Series family of kitchen appliances
  • Brushed stainless steel finish
  • Welded, polished seams for a flawless design
  • Premium electronic touch controls
  • Convenience
  • Halogen lighting spotlights your best recipes
  • Dishwasher safe stainless-frame mesh filters
  • Dimmer lighting - for those hours after a late meal
  • Built-in Clean Filter Reminder light
  • Telescopic chimney - adjustable at installation
  • Delayed shutoff tackles lingering odors for up to 10 minutes
  • Blowers sold separately
  • Choose from Inline, Remote or Integrated Blowers
  • Installation Options
  • Thermador Chimney Wall Hoods may be installed above a Thermador non-professional gas, electric or induction cooktop to create a convenient cooking center.
  • Hood installation height above a cooktop or range can vary.
  • To obtain the necessary installation height above a Thermador non-professional gas, electric or induction cooktop, consult the appliance's installation manual.
  • Thermador Chimney Wall Hoods must be mounted on a wall.
  • These hoods are designed to be used for vertical discharge.
  • A blower must be purchased separately.
Info and Guides

Adobe Acrobat FileUse and Care Manual

Adobe Acrobat FileInstallation Manual

You will need Adobe Acrobat Reader to view and print pdf files

Adobe Reader
Current Rebates
Free Dishwasher & Ventilation System (Up To $6,097 In Savings) with the Purchase Of A Thermador Kitchen Appliance Package

Save Up To $6,097 with One-Two-Free

Option One: Professional or Masterpiece Suite
•   Buy a 30", 36" or 48" Range OR Any Cooktop or Rangetop and Any Double or Triple Combination Oven AND Get a FREE Emerald Dishwasher

Option Two: Power Up with Steam
•   Buy a 48" Pro Grand Steam Range OR Any Cooktop, Rangetop and Any Double or Triple Combination Oven and Steam/Convection Oven AND Get a FREE Sapphire Dishwasher

ADD Any 30" or 36" Bottom Freezer OR Any 42" or 48" Side by Side or Any (2) Freedom Columns AND Get Any Ventilation System FREE

An AJ Madison Exclusive Rebate An AJ Madison Exclusive Rebate
Download Download Rebate Form
Calendar Valid: 01/01/2014 - 12/15/2014

Available Rebates - May be Combined

Note: It is the sole responsibility of the customer to download and mail in the rebate form by the respective closing date. AJ Madison cannot be held responsible for non-compliance of the afore-mentioned.

Product Reviews
Items to Compare

Quick LookQuick Look

Quick Specs
Quick Specs

Appearance

  • Style : Chimney Style
  • Type : Hood
  • Color : Stainless Steel
  • Mounting Type : Wall Mount
  • Venting Type : Ducted
  • Blower Type : Both

Dimensions

  • Width : 41 1/2"
  • Depth : 21 1/2"
  • Height : 31"

Features

  • CFM : 1300
  • Dishwasher Safe Filters : Yes
  • Speeds : 4
  • Lighting Levels : 1
  • Halogen Lighting : Yes
  • Approved for Outdoor Use : No

Technical Details

  • Energy Star Rated : No
  • Amps : 20
  • Voltage : 120 Volts
