Wolf GR486CLP

High Altitude Conversion Kit

Oven Accessories

Surface Accessories

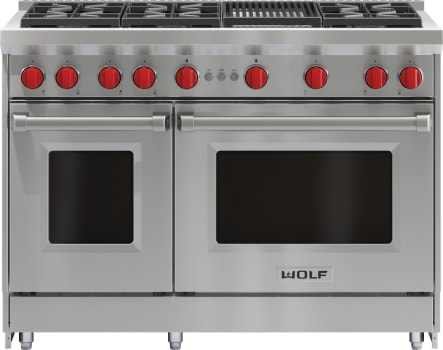

Wolf 48" Gas Range
The new 48" Gas Range, still the most-customizable range in the Wolf family, now with an updated design, new product features and enhanced performance. For the first time, Wolf gas ranges have been enriched with dual-stacked burners that offer precision control while sealed, seamless burner pans make cleaning up spills a breeze. The 48" Gas Range features two ovens, one 30" gas convection oven with infrared broiler and ultra-fast preheating, and one 18" non-convection oven.

The design has been upgraded from top to bottom. The clean lines are highlighted by their signature Wolf red, infinite control knobs (also available in black or stainless), stainless steel knob bezels and a spring-and-damper hinge for always-smooth door closure - even when your hands are full. Customizing opportunities are abundant, as your gas range can be configured in five different ways.

About Sub-Zero and Wolf
What do you want your kitchen to be? Sub-Zero refrigerators, freezers and wine storage units are the definitive kitchen components. Made by hand. Tested to the nth degree. With innovative dual refrigeration.

Built to the same exacting standards, Wolf cooking instruments help give the fullest expression to your love of good food and the pleasure of preparing it. Wolf fuels your passion for cooking.

An Ideal Marriage
When Sub-Zero Freezer Company acquired Wolf in March 2000, kitchen design insiders uttered a collective "Aha!" It just made sense, this marriage of ice and fire, cold and hot. Sub-Zero and Wolf are complementary expressions of a single idea: the steadfast refusal to compromise. They are the brands for people who will have nothing less than the kitchen they have always wanted - an uncompromised kitchen.

Specifications
Exterior Finish:	Stainless Steel
Large Oven Interior Capacity:	4.4 Cu. Ft.
Small Oven Interior Capacity:	2.5 Cu. Ft.
Surface Burners:	(5) 15,000 BTU and (1) 9,200 BTU
Infrared Charbroiler:	Yes
Dual-Stacked Sealed Burners:	Yes
Flame Recognition:	Yes
Automatic Reignition:	Yes
Grates:	Porcelain-Coated, Cast Iron
Continuous Grates:	Yes
Large Convection Oven:	Large Oven Only
Infrared Broiler:	Yes
Ultrafast Pre-Heating:	Yes
Oven Racks:	5 Adjustable
Broiler Pan:	Yes
Porcelain Oven Interior:	Yes
Interior Light:	Halogen
Door Hinge System:	Spring and Damper
Adjustable Stainless Steel Legs:	Front
Casters:	Rear
Electrical Requirements:	110/120 VAC, 50/60 Hz, 15 Amp Circuit
Dimensions and Weights
Overall Width:	47 7/8"
Overall Depth (To Cooking Surface):	28 3/8"
Overall Height:	37"
Opening Width:	48"
Opening Depth:	24"
Opening Height (To Countertop):	36"
Large Oven Interior Width:	24"
Large Oven Interior Depth:	17"
Large Oven Interior Height:	18 5/8"
Small Oven Interior Width:	13 1/2"
Small Oven Interior Depth:	17"
Small Oven Interior Height:	18 5/8"
Shipping Weight:	665.0 Lbs.

• Heavy-duty stainless steel exterior with island trim.
• Dual-stacked, sealed burners for precise control and easy cleanup.
• Flame recognition and automatic reignition for safety and ease of use.
• Signature red control knobs with infinite control.
• Stainless steel bezels surround control knobs.
• Porcelain-coated, cast iron continuous burner grates.
• Top configurations including infrared charbroiler and infrared griddle with stainless steel covers.
• Large-capacity gas convection oven with three adjustable oven racks.
• 18" non-convection oven with two adjustable oven racks.
• Infrared broiler with ultrafast pre-heating in 30" oven.
• Halogen lit, porcelain oven interiors with window in doors.
• Adjustable stainless steel legs in front and rear casters.
• Wolf exclusive spring and damper door hinge system.
• Star-K Kosher certified as Sabbath and holiday-compliant.
• Available at AJ Madison.
• www.ajmadison.com

Wolf Cleaning Instructions

Wolf Design Guide

Installation Guide

Use and Care Guide

Quick Reference Guide
