Home > Cooking Appliances > Wall Ovens > Double Wall Ovens > GLEB30T9FB

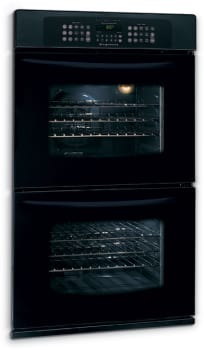

Frigidaire Gallery Series GLEB30T9FB - Black on Black
Frigidaire Gallery Series GLEB30T9FB - Black on Black

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Frigidaire Gallery Series GLEB30T9FB
Authorized
Dealer

Frigidaire Gallery Series
GLEB30T9FB
30 Inch Double Electric Wall Oven with EvenCook3 on Both Oven, Self-Cleaning, Maxx Clean and 3 Heavy Duty Racks on Each Oven: Black on Black

Top Quality Store on Google
quick specs
Microwave: No
Drawer: None
Cutout Width: 28 1/2 Inch
Cutout Depth: 23 1/2 Inch
Cutout Height: 49 1/8 Inch
Upper Capacity: 4.2 Cu. Ft.
Lower Capacity: 4.2 Cu. Ft.
Proof Mode: No
Self-Cleaning: Both
Temperature Probe: No
Undercounter Installable: No
Warranty Terms: 1 year
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: Frigidaire
Series: Gallery Series
Model: GLEB30T9FB
Warranty Terms: 1 year
?
Appearance
Fuel Type: Electric
Style: Double
Microwave: No
Color: Black
Stainless Steel Handle: No
Control Type: Digital
Viewing Window: Yes
Drawer: None
Clock: Digital
Dimensions
Cutout Width: 28 1/2 Inch
Cutout Depth: 23 1/2 Inch
Cutout Height: 49 1/8 Inch
Exterior Width: 30 Inch
Exterior Depth: 24 1/2 Inch
Exterior Height: 50 7/16 Inch
Shabbos Compliance
Sabbath Mode: Yes
Capacity
Upper Capacity: 4.2 Cu. Ft.
Lower Capacity: 4.2 Cu. Ft.
Upper Racks: 3
Lower Racks: 3
Oven Features
Digital Temperature Display: Yes
Timer: Yes
Delay Bake: Yes
Convection: Both
Proof Mode: No
Self-Cleaning: Both
Temperature Probe: No
Broiler Element Location: Top
Broiler Pan Included: No
Interior Oven Light: Yes
Removable Door: Yes
Technical Details
Undercounter Installable: No
Wattage: 3,400 Watts
Amps: 40
Voltage: 240/208 Volts
GTIN
UPC: 057112094311
Are you a Trade Pro? Join Now

Description

Inspired baking.
From double ovens in stainless steel to singles in black, white or bisque to microwave combination ovens, you expect more choices from Frigidaire.

You depend on large capacity ovens that range from the 3.5 cubic foot, 27" model to their 4.2 cubic foot, 30" model.

You look forward to reducing baking time by a third without sacrificing flavor thanks to their SpeedBake Convection Baking System.

You trust that their Warm and Serve Drawer will keep hot foods hot until you're ready to serve your entire meal.

And, you'll appreciate how easy and safe cleanup can be thanks to their hidden bake element.

You expect all this from Frigidaire... and they deliver.

Specifications

Oven Features
Convection Cooking System:
EvenCook3 (Both)
Self-Cleaning Oven with Auto-Latch Safety Lock:
Both
Speed Clean:
Both
Maxx Clean:
Both
Dual Radiant Baking and Roasting System:
Both
Six-Pass Element with Vari-Broil:
400?-550? (Both)
Hidden Bake Element:
Both
Interior Oven Light (Automatic and Switched):
2 (Both)
Porcelain Broiler Pan with Grill:
No
Oven Racks (number per Cavity):
3 Heavy Duty
Convection Roasting Rack:
No
Removable Oven Door:
Yes
Control Panel Features
Electronic Clock/Timer/Temperature Display:
Yes
Automatic Oven (Delay, Cook and Off):
Yes
Automatic Oven Shut-Off (12 hour):
Yes
F?or C? Programmable:
Yes
Integrated Oven Light (Touch Pad):
Yes
Sabbath Mode (Star-K Certified):
Yes
Oven Style
Color:
Black-on-Black
Visualite Window:
Large (Both)
Door:
Glass (Both)
Handle:
UltraPro Color Coordinated (Both)
Specifications
Exterior Dimensions (WxHxD):
30" x 50 7/16" x 24 1/2"
Interior Oven Dimensions (WxHxD):
24 1/8" x 16 1/2" x 18 1/32"
Cutout Width:
28 1/2" - 29"
Cutout Height:
49 1/8" - 49 7/8"
Cutout Depth:
23 1/2"
Oven Capacity:
4.2 Cu. Ft. (Both)
Shipping Weight (Approx.):
293 Lbs.
Connected Load (kW Rating) 240/208 Volts:
8.2/6.2
Amps @ 240/208:
34.1/29.6
Minimum Circuit Required - Amps:
40
Bake Element Wattage 240/208 Volts:
3400/2554
Broil Element Wattage 240/208 Volts:
2750/2065
Armored Electrical Cable:
Yes

Features

Control Panel Features
  • Color-Coordinated Control Panel
  • EasySet Electronic Oven Controls
  • Electronic Clock / Countdown Timer
Oven Features
  • Slim-Profile Design
Upper and Lower Oven Features
  • 3.5 Cu. Ft. Electric Self-Cleaning Oven with Auto-Latch Safety Lock
  • Self-Cleaning System with Speed Clean and Maxx Clean
  • UltraPro Color-Coordinated Handle
  • 3 Heavy-Duty Oven Racks
  • Automatic Convection Conversion
  • Color-Coordinated Glass Door
  • Dual Radiant Baking and Roasting
  • Enhanced Vari-Broil - Select temperature from 400? to 550? in 1? increments
  • EvenCook3 Element Convection System
  • Hidden Bake Element
  • Large, Clear Glass Visualite Window
  • Preheat Control and Keep Warm Setting
  • 2 Oven Lights - Activated automatically when door is opened or manually on control panel
  • Sabbath Mode (Star-K Certified)
Installation Options
  • Stand-alone in a Cabinet
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Use and Care Manual
Timer Guide
Wiring Diagram
Installation Instructions
Parts Manual
Tech Data
