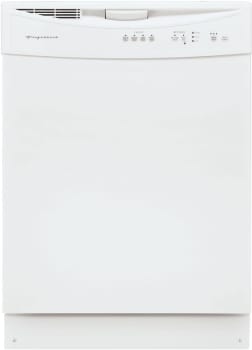

Frigidaire FDB1100RHS - White
Frigidaire FDB1100RHS - White
Frigidaire FDB1100RHS - Angled View
Frigidaire FDB1100RHS - Built-in View
+2

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Frigidaire FDB1100RHS
Authorized
Dealer

Frigidaire
FDB1100RHS
Full Console Dishwasher with 5 Wash Cycles, 14 Place Settings, Delay Start, Control Lock Option, Ready-Select Controls and Energy Saver Dry Option: White

Top Quality Store on Google
quick specs
Width: 24 Inch
Depth: 25 Inch
Height: 33 1/2 Inch
Capacity: 14 Place Settings
Control Type: Touchpad
Adjustable Upper Rack: No
Stainless Steel Interior: No
Cycles: 3
Delay Start: Yes
Dry Type: Heated
High Temperature Wash: Yes
NSF Certified Rinse: No
Quick Wash Setting: No
Sensor Clean: No
Warranty Terms: 1 year
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: Frigidaire
Model: FDB1100RHS
Warranty Terms: 1 year
?
Dimensions
Width: 24 Inch
Depth: 25 Inch
Height: 33 1/2 Inch
Capacity
Capacity: 14 Place Settings
Appearance
Type: Built In
Color: White
Accepts Panels: No
Features
Control Type: Touchpad
Electronic Display: No
Control Style: Full Console
Child Lock: Yes
Adjustable Upper Rack: No
Fold-Down Tines: No
Rack Material: PVC
Cutlery Tray: No
Tall Tub: Yes
Stainless Steel Interior: No
Number of Spray Arms: 2
Rinse Aid Dispenser: Yes
Water Filtration: Yes
Water Heating: Yes
Wash Features
Cycles: 3
Delay Start: Yes
Dry Type: Heated
Hard Food Disposer: No
High Temperature Wash: Yes
NSF Certified Rinse: No
Quick Wash Setting: No
China/Crystal Setting: No
Sensor Clean: No
Heavy Duty Cycle: Yes
Technical Details
Energy Star Rated: Yes
ADA Compliant: No
Amps: 15
Voltage: 120 Volts
GTIN
UPC: 012505111105
Are you a Trade Pro? Join Now

Description

When you select a home appliance from Frigidaire, you've chosen a product of exceptional performance, convenience and style; an appliance that has been designed to work in harmony with the way you live. Available at AJ Madison.

Frigidaire, one of the leaders in home appliances; offers superior products and service to rival many other companies. Through meaningful innovations, they've humanized their technology to create appliance design that's uncluttered, controls that are intuitive, and features that are as sensitive as they are smart.

Specifications

Dimensions & Weights
Width:
24"
Depth including Door:
25"
Depth to Tub Flange:
22 1/2"
Depth with Door Open 90?:
49 1/4"
Height (Adjustable):
33 1/2" - 35"
Cutout Width:
24" min.
Cutout Depth:
24" min.
Cutout Height:
34 1/4" min./35 1/4" max.
Approximate Shipping Weight:
64 lbs.
Features
Control Design:
Ready-Select
Digital Display:
No
Door Latch:
Yes
Stay-Put Door Hinge Design:
No
Low Rinse-Aid Indicator Light:
Yes
Interior Design:
Tall Tub
Interior Color:
White
Wash System:
Precision Wash
Wash Levels:
5
Wash Speeds:
1
Smart Soil Sensor:
No
Sound Package:
UltraQuiet 2
Filter:
Plastic
Filter Trap:
Removable
Soft Food Disposer:
Yes
dB Level:
60
Drying System:
Static
Cycles
Number of Cycles:
3
Heavy:
Yes
Normal:
Yes
Light:
No
Favorite:
No
China Crystal:
No
Rinse Only:
Yes
Energy Saver:
No
Upper Rack Wash Only:
No
Cycle Indicator Light:
Yes
Control Lock:
Yes
Options
Heat/No Heat Dry:
Yes
Hi-Temp Wash:
Yes
NSF Certified Sanitize Rinse:
No
Delay Start:
2-4-6 Hour
Rack System
SpaceWise Silverware Basket:
Ultra 1
Rack System:
Deluxe
Rack Coating:
PVC
Rack Handles:
No
Stemware Holders:
No
Fold-Down Tines:
No
Cup Shelf:
No
Small Items Cover:
No
Certifications
ENERGY STAR:
Yes
Specifications
Water Inlet Location:
Left Bottom Front
Water Usage:
7.2 Gallons
Water Pressure:
20 - 120 PSI
Integral Air Gap on Supply:
Yes
Leveling Legs:
4
Power Supply Connection Location:
Right Bottom Front
Voltage Rating:
120V/60 Hz/15A
Connected Load (kW Rating) @ 120 Volts:
1.44 kW
Amps @ 120 Volts:
10 Amps

Features

Fits-More Capacity
  • The large capacity, tall-tub dishwasher fits up to 14 place settings so you can wash even more at once.
Quiet Dishwasher
  • A quiet performance every time.
SpaceWise Silverware Basket
  • There's a place for all of your silverware in our multicompartment, removable basket.
Precision Wash Technology
  • The dishwasher features Precision Wash Technology, which gives you clean dishes every time.
Delay Start
  • Set your dishwasher to run on your schedule.
Ready-Select Controls
  • Easily select options with the touch of a button.
Energy Saver Dry Option
  • No heat dry option.
Attractive Stainless Steel Exterior
Low Rinse-Aid Indicator Light
Control Lock Option
5-Level Wash Design
White Interior
UltraQuiet 2 Sound Reduction System
ENERGY STAR
