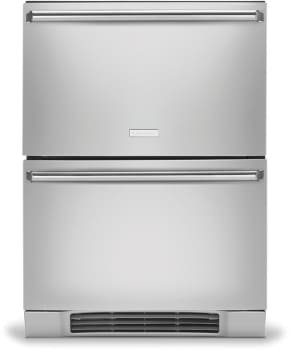

Electrolux IQ-Touch Series EI24RD65KS
24" Built-in Refrigerator Drawers with 4.74 cu. ft. Capacity, Perfect Set Temperature Control, LED Lighting and Fully Integrated Electronic Controls

Discontinued

No Longer Available

Replaced by EI24RD10QS   compare>>

Description
Perfect Set Temperature Control
Set a temperature anywhere between 34 and 45 degrees-the Refrigerator Drawers will hold it to within one degree of variance.

Luxury-Glide System
Opening or closing a drawer is smooth and easy-all it takes is the touch of a finger.

Large Capacity
Even large enough for two-liter bottles and large serving trays.

PureAdvantage Air Filter
Keeps clean, filtered air circulated throughout to prevent odor transfer.
Specifications
Dimensions & Weights
Cavity Dimensions - Width: 17 1/4"
Cavity Dimensions - Depth: 17 7/8"
Cavity Dimensions - Upper Drawer Height: 12 3/64"
Cavity Dimensions - Lower Drawer Height: 12 3/16"
Product Dimensions - Width: 23 13/16"
Product Dimensions - Depth to Center of Arc: 24 1/4"
Product Dimensions - Depth Fully Extended including Handle: 42 3/4"
Product Dimensions - Height: 34" - 35"
Product Weight: 165 lbs.
Shipping Weight: 175 lbs.
Features
Capacity: 4.74 cu. ft.
Configuration: 2 Drawers
Installation Type: Built-in
IQ-Touch Electronic Controls: Yes
Fully Integrated Control Panel: Yes
Blue LED Display: Yes
Luxury-Glide Full-Extension Self-Closing Drawers: Yes
Luxury-Design LED Lighting: Yes
Perfect Set Controls: Yes
PureAdvantage Air Filtration: Yes
Electronic Control Lock: Yes
Display Temp Mode (°C or °F): Yes
Door Ajar Acoustic Alarm: Yes
High-Temperature Acoustic Alarm: Yes
Power Failure Acoustic Alarm: Yes
Mute Sound Control: Yes
Power-On/Off Control: Yes
Vacation Mode: Yes
Sabbath Mode (Star-K Certified): Yes
Holds 12" Bottle (Upper and Lower Drawer): Yes
Storage Shelf (Lower Drawer): Yes
Frost-Free Performance: Yes
Dynamic Condenser: Yes
Additional Features
Signature Soft-Arc Drawer Front and Handle Design: Yes
Adjustable Leveling Legs: 4
A.D.A. Compliant: Yes
Accessories
Condiment Tray - PN# 241965501: Included
PureAdvantage Replacement Air Filter - PN# EAFCBF: Included
Specifications
Color: Stainless Steel
Temperature Range: 34°F - 45°F
Electrical Cable: Yes
Power Supply Connection Location: Right Bottom Rear
Voltage Rating: 120 Volt / 60 Hz / 15 Amp
Connected Load (kW Rating) @ 120 Volts: 0.16 kW
Minimum Circuit Required: 15 Amps
Features
  • Features
  • Perfect Set Temperature Control
  • Set a temperature anywhere between 34 and 45 degrees - the Refrigerator Drawer will hold it to within one degree of variance.
  • Luxury-Glide System
  • Opening or closing a drawer is smooth and easy - all it takes is the touch of a finger.
  • Luxury-Design Lighting
  • The ramp-up designer LED lighting is as beautiful as it is functional.
  • Large Capacity
  • Even large enough for two-liter bottles and large serving trays.
  • PureAdvantage Air Filter
  • Keeps clean, filtered air circulated throughout to prevent odor transfer.
  • Fully Integrated Electronic Controls
  • The top-of-drawer location is easy to program and offers precise temperature control.
  • Alarm System
  • Notifies you if there's been a power failure, if a drawer stays open longer than five minutes, and if the interior temperature rises 10 degrees or more for four hours.
  • Even More Innovative Features
  • Signature Soft-Arc Door And Handle Design
  • Energy-Saving Vacation Mode
  • Sabbath Mode (Star-K Certified)
  • Platinum Star Warranty
Info and Guides

Adobe Acrobat FileOwners Guide

Adobe Acrobat FileWiring Diagram

Adobe Acrobat FileSpecification Sheet

Adobe Acrobat FileEnergy Guide

You will need Adobe Acrobat Reader to view and print pdf files

Adobe Reader
Product Reviews
Rated 1.3 out of 5 by 3 reviewers.
Rated 1 out of 5 by not so thrilled funny i was asked to make a review. i am really unhappy with my fridge drawers. the AF alarm function will not stop. i ordered new and extra filters to fix the issue and it will not stop . the constant flashing is annoying 1/22/13
Rated 2 out of 5 by Pay for the higher end drawers instead We have owned this unit for 3 years and have had to have it repaired once a year.  The same problem each time - the drawer frayed one of the wires causing the unit to malfunction.  It was covered under warranty the first two times, but the 3rd time it was a $400 repair. We had to fight with electrolux to pay for it.  There seems to be a defect in the design for the same thing to happen 3 times, but they didn't agree.  Nonetheless they ended up paying for it this time.  It also beeps all the time, saying the drawer is ajar when the drawer is closed shut.  Very irritating.  It it didn't have all these problems, I would give it a 5. 5/30/13
Rated 1 out of 5 by REGRET NOT BUYING KITCHEN AID REFRIGERATOR DRAWERS We have had this unit less than a year and from the moment we had it installed it continuously beeps telling us the drawer is ajar when it is clearly shut!  The kicker, we go to bed and are woken up at 1:30 to beeping that the drawer is ajar and nobody has opened it!  Super Frustrating.....my friends have a KitchenAid Unit and have never had an issue, definitely recommend KitchenAid over Electrolux! 9/13/13
  • 2016-02-08 T05:42:40.372-06:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_3, tr_3
  • loc_en_US, sid_EI24RD65KS, prod, sort_default
1-3 of 3
Items to Compare

Quick LookQuick Look

Quick Specs
Quick Specs

Appearance

  • Type : Built In
  • Style : Drawers
  • Size : Compact
  • Counter-Depth : Yes
  • Glass Door : No
  • Freezer : No
  • Microfridge : No
  • Undercounter : Yes
  • Reversible Doors : No
  • Door Finish : Smooth
  • Accepts Custom Panels : No
  • Door Color : Stainless Steel
  • Cabinet Color : Black

Capacity

  • Refrigerator Capacity : 4.74 Cu. Ft.
  • Total Capacity : 4.74 Cu. Ft.

Dimensions

  • Width : 23 13/16 Inch
  • Depth : 26 3/4 Inch
  • Depth without Door and Handles : 21 9/16 Inch
  • Depth without Handles : 24 1/4 Inch
  • Depth with Door at 90° : 42 3/4 Inch
  • Height : 34 Inch

Refrigerator Features

  • Glass Shelves : No
  • Wire Shelves : No
  • Plastic Shelves : No
  • Stainless Steel Shelves : No
  • Slide-out Shelves : No
  • Spill Safe Shelves : No
  • Cantilever Shelves : No
  • Split Shelves : No
  • Adjustable Door Bins : No
  • Gallon Door Storage : Yes

Technical Details

  • Energy Star Rated : Yes
  • Star-K Certified : Yes
  • ADA Compliant : No
  • Approved for Commercial Use : No
  • Approved for Medical Use : No
  • Approved for Outdoor Use : No
  • Amps : 15
  • Voltage : 120 Volts

Settings

  • Digital Temperature Control : Yes
  • Sabbath Mode : Yes
