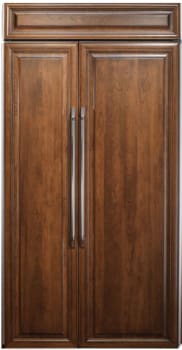

Dacor Discovery DYF48BNDI
Built-in Side by Side Refrigerator with 4 Adjustable Glass Shelves, Sabbath Mode, Energy Star Qualified, Water Filtration System and Electronic Touch Controls: 48 Inch Width


No Longer Available

Selected 48" Width

Door Handle Options (Set of 2)

No Handles Required
Stainless Steel Epicure Handles with Chrome Trim (Set of 2) (AFEBI42H2CH) + $389.00
Brushed Stainless Steel Millennia Handles (Set of 2) (ARFMH42H2) + $459.00
With Dacor Discovery 48" and 42" Integrated Built-In Refrigerators, luxury and beauty aren't just skin deep. Advanced features like the Ingredient Care Center - that ensures ultimate freshness, taste, and texture of your favorite cheeses, fresh produce, herbs and meats in an electronically-controlled temperature-adjustable drawer - make certain your refrigerator performs as smartly as it looks with your customized door panel.
Available at AJ Madison.

As an option, Epicure and Millennia Style handles are available to complete your Dacor kitchen. The SureSeal Gasket System creates a firm instant seal that keeps the cold air inside to guarantee maximum food preservation. Cool inside . . . customized beauty outside.
Refrigerator Capacity: 18.7 cu. ft. (48")
Freezer Capacity: 11.1 cu. ft. (48")
Electrical Requirements: 115V; 15A or 20A
Included Accessories: Water Filter (AFF6)
Labor Warranty: 2 Years
Parts Warranty: 2 Years
Sealed System Parts and Labor: 6 Years
Sealed System Parts: 10 Years
Dimensions (without handles):
Product Width: 48 1/4"
Product Height: 83 1/2" - 84 3/4"
Product Depth (without handles): 25 3/8"
Product Depth (without door): 23 1/2"
Please Refer to Planning Guide: For More Detailed Dimensions.
  • Energy Star Qualified
  • Environmental friendly and energy efficient, surpasses minimum federal standards by 20%.
  • Electronic Touch Control Panel with LCD Display provides:
  • PreservPlus Precision Temperature Management System
  • Adjusts temperature to keep foods at their peak for superior flavor and quality.
  • Door Alarm Indicator Light
  • Will alert when door has been open for longer than 10 minutes preventing an increase of temperature and food spoilage.
  • Over Temperature Indicator Light
  • Will flash and alarm will sound when the refrigerator temperature rises above 48°F or the freezer temperature rises above 15°F for longer than 1-1/2 hours.
  • Max Cold
  • Assists with periods of heavy ice usage, full grocery loads or a temporarily warm room by lowering the temperature in the freezer and refrigerator compartments.
  • Sabbath/Vacation Mode
  • When applied, the ice maker will be disabled and the interior lights will be turned off. STAR-K Certified.
  • Water Filter Indicator
  • Lets you know when it is time to order and replace the water filter.
  • Ingredient Care Center
  • Is an electronically controlled, temperature-adjustable storage drawer that ensures ingredients, from cheeses and fresh produce to herbs and fresh meat, remain fresh for maximum taste and texture.
  • Clear View Crispers and Deli Drawers
  • Allow contents to be easily seen without the need to open the drawer.
  • Adjustable Clear Shelves
  • Help contain spills and provide added visibility and storage as needed.
  • GlideDrawers
  • With ball-bearing rollers open smoothly and easily.
  • Adjustable Gallon Door Bin
  • Holds gallon size containers for easy and convenient access.
  • SureSeal Gasket System
  • Creates a firm instant seal that keeps cold air inside to guarantee maximum food preservation.
  • Personalize
  • With your choice of Epicure or Millennia Style Handles (must be ordered separately).
  • Easy Access Base-Grille Water Filter
  • Makes changing the Pur water filter a breeze.
  • **Customized door panel and handles must be ordered separately.**
Info and Guides

Adobe Acrobat FilePlanning Guide

Adobe Acrobat FileInstallation Instructions

Adobe Acrobat FileUse and Care Manual

You will need Adobe Acrobat Reader to view and print pdf files

Adobe Reader
Expired Rebates
Dacor Go For Gold - Instant Kitchen Rewards

Free Dishwasher, Ventilation System, Microwave or Instant Savings

Buy more and save more with Dacor. Qualify for Bronze, Silver or Gold level savings and choose your reward from the lists below. Rewards include free products, accessories or instant savings.

How To Save:
Bronze Level - Spend $3,500 to $7,999 UMRP
→ Choose One:
•   Distinctive Microwave and Trim Kit
•   $250 Instant Savings

Silver Level - Spend $8,000 to $11,999 UMRP
→ Choose One:
•   Any Microwave Type
•   Any Discovery Wall Hood
•   Any Raised Ventilation
•   Distinctive Dishwasher
•   $500 Instant Savings

Gold Level - Spend $12,000 UMRP or higher
→ Choose One:
•   Any Microwave Type
•   Any Ventilation/Downdraft
•   Any Dishwasher
•   $750 Instant Savings

Bonus Savings:
•   Upgrade to one Silver reward product - $500 (instead of Bronze reward)
•   Upgrade to one Gold reward product - $500 (instead of Silver reward)

Terms and Conditions:
Remote Blower or Chimney Hood sold separately. Reward items do not count towards qualifying spend.

Download Download Rebate Form
Calendar Valid: 04/01/2015 - 12/31/2015

Available Rebates - May be Combined

Note: It is the sole responsibility of the customer to download and mail in the rebate form by the respective closing date. AJ Madison cannot be held responsible for non-compliance of the afore-mentioned.

Product Reviews
Items to Compare

Quick LookQuick Look

Quick Specs
Quick Specs


  • Type : Built In
  • Style : Side-by-Side
  • Size : Full Size
  • French Door : No
  • Double Freezer Drawers : No
  • Counter-Depth : Yes
  • Glass Door : No
  • Freezer : Yes
  • Microfridge : No
  • Undercounter : No
  • Reversible Doors : No
  • Door Finish : Smooth
  • Accepts Custom Panels : No
  • Door Color : Panel Ready
  • Cabinet Color : Other


  • Refrigerator Capacity : 18.7 Cu. Ft.
  • Freezer Capacity : 11.1 Cu. Ft.
  • Total Capacity : 29.8 Cu. Ft.


  • Width : 48 1/4 Inch
  • Depth without Door and Handles : 23 1/2 Inch
  • Depth without Handles : 25 3/8 Inch
  • Height : 84 3/4 Inch

Refrigerator Features

  • Type of Shelves : Glass
  • Glass Shelves : Yes
  • Wire Shelves : No
  • Plastic Shelves : No
  • Stainless Steel Shelves : No
  • No. of Shelves : 4
  • Spill Safe Shelves : Yes
  • Cantilever Shelves : No
  • No. of Door Bins : 4
  • Gallon Door Storage : Yes
  • Humidity Controlled Crispers : 2

Freezer Features

  • Defrost : Automatic
  • Ice Maker : Yes
  • Ice Dispenser : Yes
  • Quick Freeze : No
  • Type of Shelves : Wire
  • Glass Shelves : No
  • Wire Shelves : Yes
  • Plastic Shelves : No
  • Stainless Steel Shelves : No
  • No. of Shelves : 3
  • No. of Baskets : 2

Technical Details

  • Energy Star Rated : Yes
  • Star-K Certified : Yes
  • ADA Compliant : No
  • Approved for Commercial Use : No
  • Approved for Medical Use : No
  • Approved for Outdoor Use : No
  • Amps : 20
  • Voltage : 120 Volts


  • Digital Temperature Control : Yes
  • Sabbath Mode : Yes
