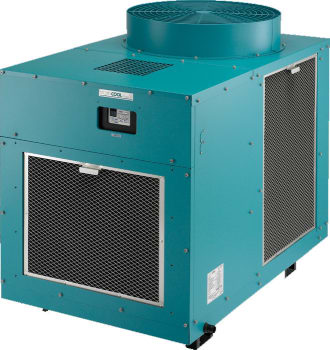

Movincool Classic Series CLASSIC60

60,000 BTU Portable Air Cooled Air Conditioner with Mechanical Temperature Control and 3,800 CFM Air Flow

Your Price: $7,339.00

Qty:

Price Match Policy Price Match Policy
Printer Friendly Page Print
Share this item:

Companion Products, Options, and Accessories

Movincool CLASSIC60

This item

Add selected items to cart

Total price: 0

Additional Options

Multiple or Remote Area Cooling

Add

Chamber Extender Flange Kit

(C602A) (required)
+ $29.00
Add

Reducer Flange Kit

(C603B) (required)
+ $89.00
Add

12" Diameter Cold Air Flange Kit

(C601)
+ $49.00
Add

Two-Way Chamber

(C603)
+ $99.00
Add

6" Diameter Extension Duct

(C604)
+ $49.00
Add

6" Diameter Trim Ring

(C605)
+ $9.00
Add

12" Diameter Extension Duct

(C606)
+ $89.00

Portability

Add

Casters Kit

(C609)
+ $99.00

Spot or Remote Cooling

Add

Remote Control Kit

(C6010)
+ $169.00
Description
For larger applications, the MovinCool Classic 40 or Classic 60 can create flexible, mobile or temporary cooling in factories and warehouses. Using multiple T-section drops, you can customize an adaptable cooling solution for your manufacturing or assembly lines. Add an optional wagon kit or casters to the units and you can move the cool air as your assembly or process line changes.

By cooling only the area that needs it, the Classic 40 and Classic 60 saves you money while protecting people and equipment and speeding up processes.

Spot Cooling is portable air-conditioning that can be placed where you need it the most.

A Spot Cooler unit can be moved from room to room or positioned strategically to cool "hot spots" in your office or building - areas that require consistent temperatures.

While energy costs continue to climb utility companies are frequently unable to provide all of the electricity that a plant, laboratory, hospital or office complex may require. When circumstances force your business to control capital expense, the case for spot cooling gets stronger - as spot cooling provides efficient, low-cost cooling that is easy on the bottom line.

For many industries and companies, in a wide variety of applications, Spot Coolers are the answer to controlling both energy use and capital expenses. Spot cooling is a method of cooling overheated areas within a larger area, as opposed to providing general cooling by means of a remote centrally controlled air-conditioning system. In operation, spot cooling is an extremely efficient means of cooling people, processes, and equipment because it directs a localized stream of cool air exactly where it is needed. The concept of spot cooling is not a new idea, but the use of Spot Coolers to accomplish localized cooling within work environments and equipment rooms is an effective solution to many difficult cooling problems.
Specifications
Dimensions & Weights
Width: 32"
Depth: 49"
Height: 42"
Weight: 463 lbs.
Shipping Weight: 545 lbs.
Cooling Capacity
BTU/hr. @ 95° at 60% Relative Humidity: 60,000
Electrical Characteristics
Power Supply: 460 Volts 3 Phase
Power Consumption: 7.2 Kilowatts
Current Consumption: 10.5 Amperes
Fuse Size: 20 Amperes
NEMA Plug Configuration: N/A
Min-max Voltage: 440 - 480 Volt
Power Cord Gauge: 12AWG (4 Core)
Power Cord Length: N/A
Compressor Characteristics
Compressor Type: Hermetic Reciprocal
R22 Charge: 5.9 Pounds
Operating Conditions: Min-Max°F: 75° - 115°F, 50% RH
Fan Characteristics - Evaporator
Fan Type: Centrifugal
Air Flow High/Low: 1,580 CFM
Max. External Static Pressure (Inches of Water Gauge): 1.35
Fan Characteristics - Condenser
Fan Type: Propeller
Air Flow High/Low: 3,800 CFM
Max. External Static Pressure (Inches of Water Gauge): 0.05
Safety Devices
Compressor Overload Relay: Yes
Fan Motor Protection: Yes
Anti-Freeze Thermostat: Yes
Automatic Tank Shut-off: N/A
Condensate Tank Capacity: N/A
High-Pressure Switch: Yes
Compressor Short-Cycle Protection: No
Fan Mode Switch: No
Automatic Restart: No
Thermostat: No
Control Panel: Mechanical
Thermostat Control: Mechanical
Miscellaneous Features
Operating Cost: $0.518
Humidity Removed @ 60% RH: 3.86
Accommodates Condensate Pump: N/A
Sound Level High/Low: 72 dB
Max. Evaporator Ducting Length: Varies (subtract 10 ft. for every 90° Bend)
Max. Condenser Ducting Length: 40 ft. (subtract 10 ft. for every 90° Bend)
Features
  • Inexpensive to use... operate for as little as 35 cents per hour.
  • Available in 39,000 or 60,000 Btu/hr capacities... there's a MovinCool to handle any hot spot.
  • Half the cost of central air conditioning... no costly installation is necessary.
  • Handles temperatures above 115°F... provides cooling in the hottest environments.
  • Rugged design... Proven durability since 1982.
  • UL Listed... assures safe operation.
Info and Guides

Adobe Acrobat FileQuick Specs/Dimensions

Adobe Acrobat FileOperation Manual

Adobe Acrobat FileParts Manual

Adobe Acrobat FileService Manual

You will need Adobe Acrobat Reader to view and print pdf files

Adobe Reader
Product Reviews
Items to Compare

Quick LookQuick Look

Quick Specs
Quick Specs

Dimensions

  • Width : 32"
  • Depth : 49"
  • Height : 42"

Features

  • Type : Portable
  • Cooling Capacity (BTU) : 60,000 BTU
  • Maximum Cooling Amps : 10.5 Amps
  • Maximum Cooling Watts : 7,200 Watts
  • Heat : No
  • CFM Room Circulation : 3,800 CFM
  • Energy Efficiency Rating : 8.3
  • Control Type : Rotary
  • Remote Control Included : No
  • Self-Evaporating : No
  • Grade : Commercial

Technical Details

  • Energy Star Rated : No
  • Voltage : 460 Volts
