Amana

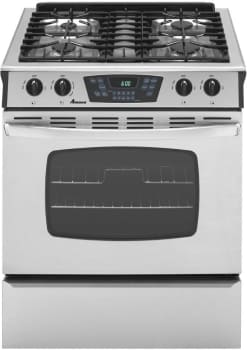

AGS5730BDS

30 Inch Slide-In Gas Range with 4 Sealed Burners, 4.5 cu. ft. Self-Cleaning Oven, Delay-Clean Oven Control, Automatic Oven Light and Storage Drawer: Stainless Steel

Average rating of
1 review

Top Quality Store on Google

quick specs

Sabbath Mode: Yes

Cooktop: Sealed Burner

Drawer: Storage

Width: 30 3/4 Inch

Depth: 28 5/16 Inch

Height: 36 7/16 Inch

Number of Burners: 4

Primary Oven Capacity: 4.5 Cu. Ft.

Continuous Grates: Yes

Hot Surface Indicator Light: No

Convection: No

Self-Cleaning: Yes

Temperature Probe: No

Warranty Terms: 1 year

NO LONGER AVAILABLE
Try This Instead

Have questions? Chat with us!

Product Information

Brand: Amana

Model: AGS5730BDS

Warranty Terms: 1 year

Appearance

Fuel Type: Gas

Style: Slide-In

Color: Stainless Steel

Stainless Steel Handle: No

Cooktop: Sealed Burner

Cooktop Control Type: Knobs

Oven Control Type: Digital

Viewing Window: Yes

Drawer: Storage

Clock: Yes

Dimensions

Width: 30 3/4 Inch

Depth: 28 5/16 Inch

Height: 36 7/16 Inch

Shabbos Compliance

Sabbath Mode: Yes

Capacity

Number of Burners: 4

Primary Oven Capacity: 4.5 Cu. Ft.

Burner

Burner 1 Output: 16000

Burner 2 Output: 9200

Burner 3 Output: 5000

Gas Cooktop Features

Continuous Grates: Yes

Electric Cooktop Features

Hot Surface Indicator Light: No

Oven Features

Digital Temperature Display: Yes

Timer: Yes

Delay Bake: Yes

Convection: No

Proof Mode: No

Self-Cleaning: Yes

Racks: 2

Temperature Probe: No

Broiler Element Location: Top

Interior Oven Light: Yes

Removable Door: Yes

Technical Details

Oven BTUs: 18,000

LP Conversion: Yes

Amps: 15

Voltage: 120 Volts

Description
Specifications
Features
Reviews

Description

The AGS5730BD features a 4.5 cu. ft. oven capacity and 4 sealed gas burners controlled by the Easy Touch 800 oven controls. It also features a 16,000-BTU High-Output burner, delay-clean oven control and an automatic oven light.

Specifications

Dimensions & Weight

Overall Height:

36 7/16"

Height to Cooktop:

36"

Overall Width:

30 3/4"

Depth incl. Handle:

28 5/16"

Cutout Height:

36"

Cutout Width:

30"

Cutout Depth:

23 1/4"

Approximate Shipping Weight:

228 lbs.

Power/Ratings

Total Connected Load - kW @ 120V:

10A or less

Interior Features

Overall Capacity:

4.5 cu. ft.

Self-Cleaning Oven:

Yes

Interior Oven Light:

Automatic

Oven Rack Positions:

Standard Oven Racks:

Storage Drawer:

Yes

EasyRack Oven Rack (UXA5900AQX):

Exterior Features

Removable Gloss Knobs:

Yes

SpillSaver Upswept Cooktop Design:

Yes

Heavy-Duty, High-Gloss, Cast-Iron Burner Grates:

Two-Piece

Trivet Grate:

Yes

Sealed-Surface Burners w/ Lift-Off Burner Caps:

Yes

LP Convertible/Kit Included:

7507P405-60

Oven Window:

Extra-Large

Controls

Easy Touch Oven Controls:

800

Electronic Clock w/ Timer:

Yes

Cook & Hold Setting:

Yes

Keep Warm Setting:

Yes

Delay Setting:

Yes

12-Hour Auto Shutoff:

Yes

Control Lockout:

Yes

Sabbath Mode:

Yes

Cooktop BTUs

Number of Burners:

16,000-/14,000-BTU Burner:

Right Front

9,200-/9,100-BTU Burners:

Left Front, Right Rear

5,000-/4,000-BTU Burner:

Left Rear

Features

Base Features

Electronic Clock with Timer

Control Lockout

2 Oven Racks

5 Rack Positions

Sabbath Mode

Delay-Bake Oven Control

Keep Warm Setting

Cook & Hold Setting

Sealed-Surface Burners and Lift-Off Burner Caps

Heavy-Duty Cast-Iron Burner Grates

Interior Oven Light

Storage Drawer

Design Highlights

30" Gas

4.5 Cu. Ft. Oven Capacity

4 Sealed Gas Burners:

(1) 16,000-BTU High-Output Burner

(2) 9,200-BTU Burners

(1) 5,000-BTU Simmer Burner

Easy Touch 800 Oven Controls

Self-Cleaning Oven

Delay-Clean Oven Control

1 Standard Oven Rack and 1 EasyRack Oven Rack

Automatic Oven Light

Extra-Large Window

Reviews

Manuals & Guides

Installation Instructions

Use & Care Guide

specifications/dimensions

Amana AGS5730BDS 30 Inch Slide-In Gas Range with 4 Sealed Burners, 4.5 cu. ft. Self-Cleaning Oven, Delay-Clean Oven Control, Automatic Oven Light and Storage Drawer: Stainless Steel
