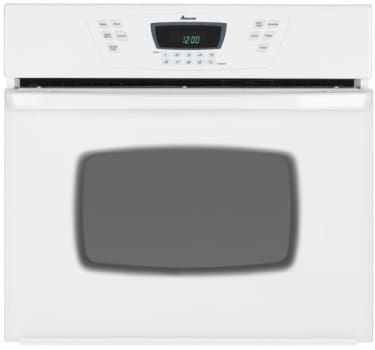

Amana AEW3530DDW - Main
Amana AEW3530DDW - Main

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Amana AEW3530DDW
Authorized
Dealer

Amana
AEW3530DDW
30 Inch Single Electric Wall Oven with 2 Oven Racks and Adjustable Self-Cleaning Oven: White

Top Quality Store on Google
quick specs
Cutout Width: 28 1/2 Inch
Cutout Depth: 24 Inch
Cutout Height: 27 7/8 Inch
Capacity: 3.8 Cu. Ft.
Proof Mode: No
Self-Cleaning: Yes
Temperature Probe: No
Undercounter Installable: Yes
Warranty Terms: 1 year
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: Amana
Model: AEW3530DDW
Warranty Terms: 1 year
?
Appearance
Fuel Type: Electric
Style: Single
Color: White
Stainless Steel Handle: No
Control Type: Touchpad
Viewing Window: Yes
Clock: Digital
Dimensions
Cutout Width: 28 1/2 Inch
Cutout Depth: 24 Inch
Cutout Height: 27 7/8 Inch
Exterior Width: 30 Inch
Exterior Depth: 24 7/16 Inch
Exterior Height: 28 1/4 Inch
Shabbos Compliance
Sabbath Mode: Yes
Capacity
Capacity: 3.8 Cu. Ft.
Oven Racks: 2
Oven Features
Digital Temperature Display: Yes
Timer: Yes
Delay Bake: Yes
Convection: No
Proof Mode: No
Self-Cleaning: Yes
Temperature Probe: No
Broiler Element Location: Top
Interior Oven Light: Yes
Removable Door: No
Technical Details
Undercounter Installable: Yes
Wattage: 3,600 Watts
Amps: 40
Voltage: 240/208 Volts
GTIN
UPC: 719881125077
Are you a Trade Pro? Join Now

Description

With the Amana AEW3530DD 30" single electric wall oven, life in the kitchen has never been easier or more convenient. With the Favorite Setting, any favorite recipe is remembered, so that even the most incompetent chef can now make a delicious meal. Two oven racks are also provided, to increase the amount of food that can be cooked at once. A large viewing window is provided as well, to allow for easy viewing of your meal-in-progress. This wall oven is ideal for anyone who likes to cook delicious meals but wants to avoid the stress.

Specifications

Dimensions/Weight/Specifications
Overall Height:
28 1/4"
Overall Width:
29 3/4"
Overall Depth:
24 7/16"
Cutout Height:
27 7/8"
Cutout Width:
28 1/2"
Cutout Depth:
24"
Interior Height:
15"
Interior Width:
23 1/2"
Interior Depth:
18 1/2"
Approximate Shipping Weight:
140 lbs.
Under-Counter/Cooktop Installation:
Yes
Total Connected Load - kW @ 240V/208V:
3.6/2.7
Oven Capacity
Capacity:
3.8 cu. ft.
Oven Features
Adjustable Self-Cleaning Oven w/ Auto Door Lock:
Yes
Six-Pass Broiler:
Yes
Automatic Oven Light:
Yes
Large Viewing Window:
Yes
Porcelain Broiler Pan:
Yes
Rack Position:
4
Oven Racks:
2
Control Features
Easy Touch Controls:
Yes
Electronic Clock w/ Timer:
Yes
Favorite Setting:
Yes
Cook & Hold Setting:
Yes
Delay-Clean Option:
Yes
Sabbath Mode:
Yes
Control Lockout:
Yes
Oven Wattage @ 240V
Bake:
2,800
Six-Pass Broiler:
3,600

Features

Base Features
  • Easy Touch Controls
  • Favorite Settings
  • Cook & Hold Setting
  • Electronic Clock with Timer
  • Control Lockout
  • Large Viewing Window
  • 4 Rack Positions
  • Automatic Oven Light
  • Six-Pass Broiler
  • Sabbath Mode
  • Adjustable Self-Cleaning Oven with Auto Door Lock
  • Delay-Clean Option
  • Smooth-Surface Control Panel
Design Highlights
  • 30" Single Electric Wall Oven
  • 3.8 Cu. Ft. Capacity
  • 2 Oven Racks
  • Under-Counter/Cooktop Installation
